Product Description

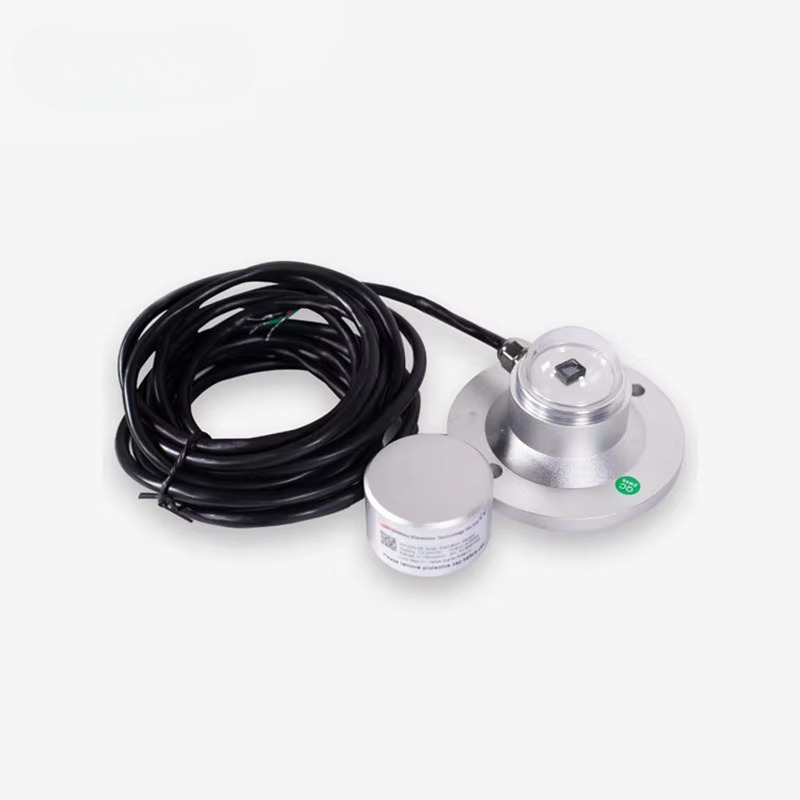

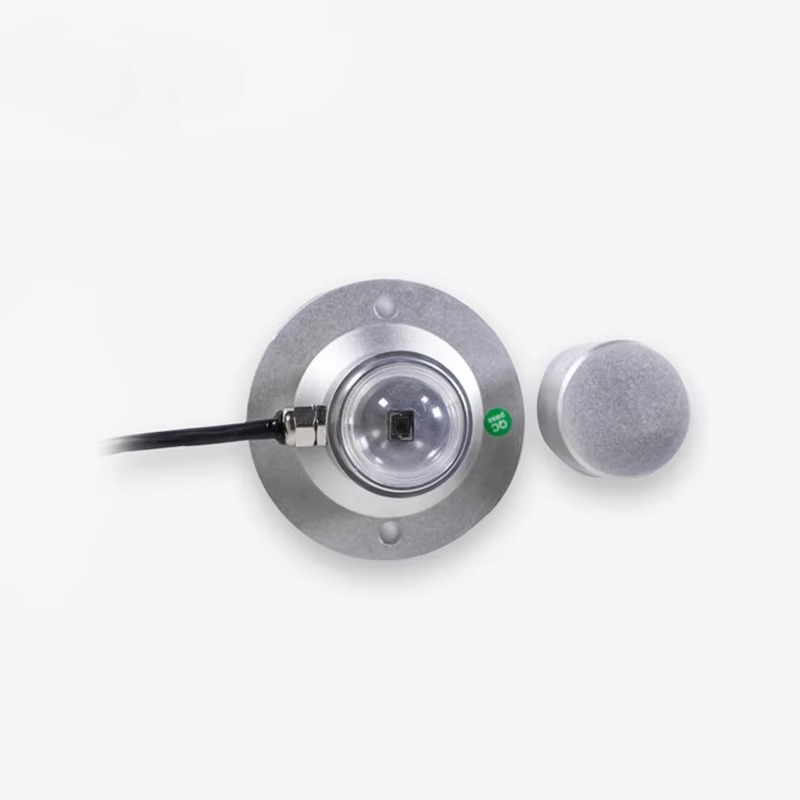

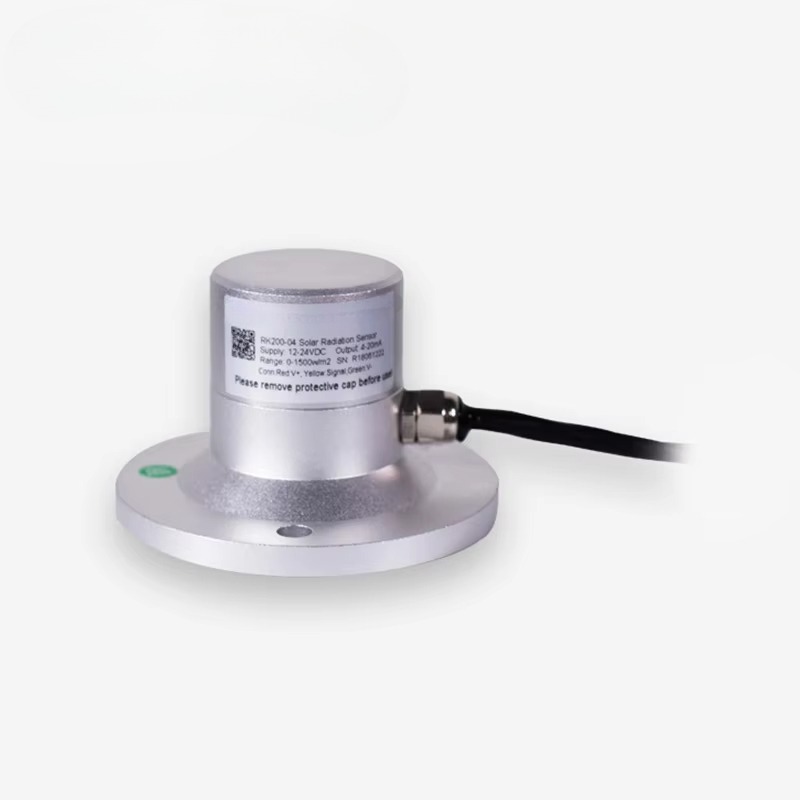

PH200-04 Solar Radiation Sensor is designed on basis of optical principle. It is mainly used for measuring solar radiation within 300-3000nm wavelength. If the sensing face is downwards, it can test the reflected radiation and Solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered?radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc.

Features

• Designed on optical principle

• No moving parts, no?maintenance, can work in any altitude

• High sensitivity

• Low power consumption

• Light weight, long service life

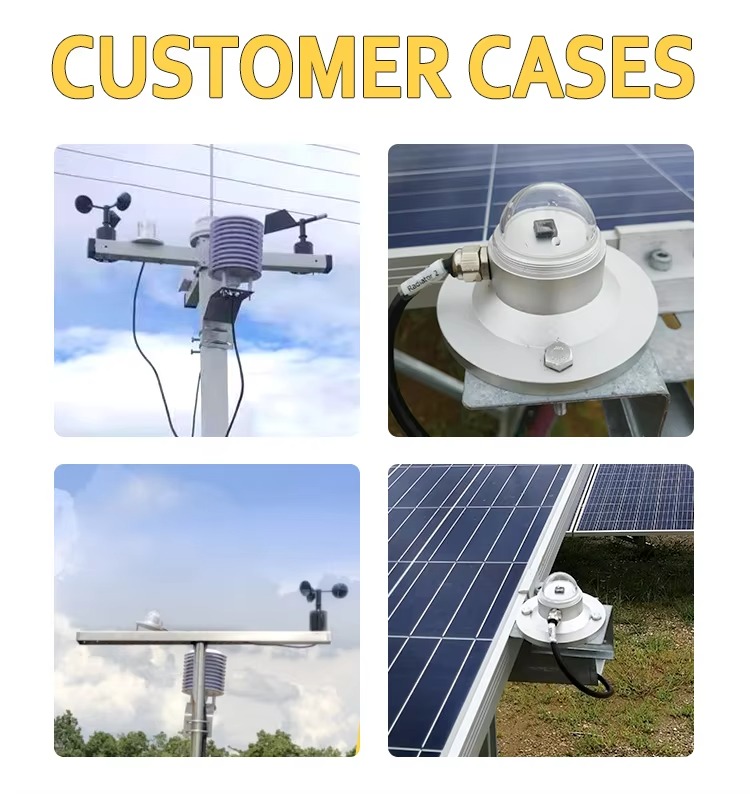

Application

• Meteorology

• Agricultre

• Construction material aging monitoring

• air pollution monitoring

• solar energy

Technical Specification

The product can be used as a sunshine time sensor
Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.

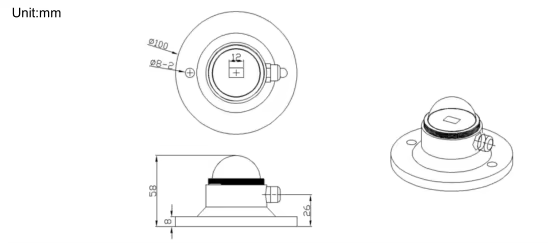

DIMENSION

OUTPUT CHARACTERISTICS

• Output of Radiation(W/m2)= Voltage output value(μv)/sensitivity?coefficient(μv*w-1*m2),

• Each product is with one sensitivity coefficient respectively (It is mentioned on the product’s label)
