Product Description

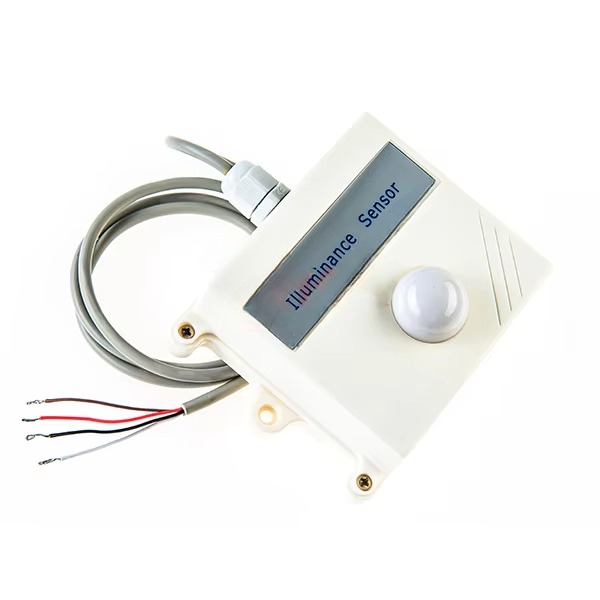

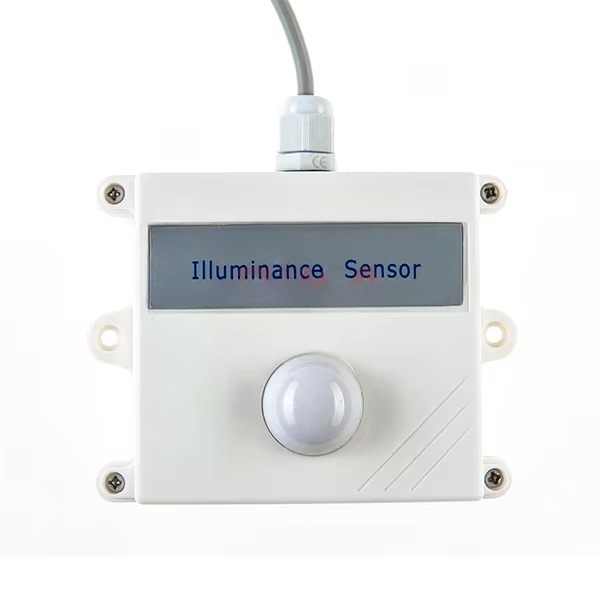

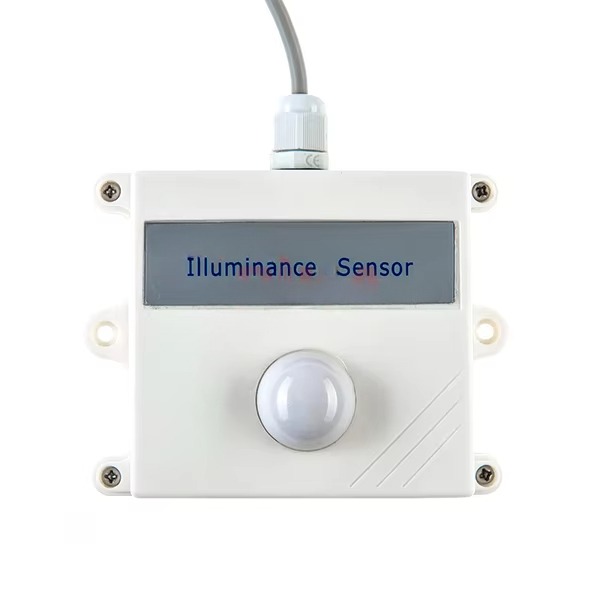

Illuminance Sensor is very sensitivity and can detect weak light, has a wide measuring range, high accuracy, good waterproof performance, easy to use, easy to install. It’s suitable for most applications, especially in agricultural greenhouses, urban lighting and other places.
FEATURES
High sensitivity
Applicable to various harsh environments
High precision, wide measuring range
Compact size
Easy installation
APPLICATIONS
Agro-meteorological
Intelligent buildings
Greenhouse control
Weather stations
Crop monitoring
SPECIFICATION
Item | Specification |
Range | 0-100lux,0-2000lux,0-20klux,0-200klux optional
|
Spectral range | 380-780nm |
Supply | 5VDC,12-24VDC |
Output | 4-20mA,0-5V,0-10V,RS485 |
Accuracy | <5%FS |
Response time | 1s
|
Temperature effect | ±0.2%/℃ |
Repeatability | <1%FS |
Display | LCD optional |
Operating temperature | -40℃-+75℃ |
Weight(unpacked) | 170g |
Shell material | ABS,metal shell can be customized |

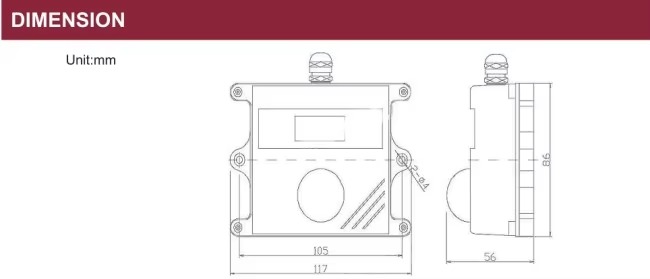

Dimension | 117*86*56mm |
Use：light lux meter sensor
Model Number | PH210-01 |
Place of Origin | wuhan, China |
Brand Name | PUHUI |
Item | Lux Sensor Pyranometer |
Spectral Range | 380-780nm |
Supply | 5VDC,12-24VDC |
Output | 4-20mA,0-5V,0-10V,RS485, Analog SENSOR |
Accuracy | <5%FS |
Response time | 1s |
Temperature effect | ±0.2%/℃ |
Repeatability | <1%FS |
Display | LCD optional |
Certificate | CE |
Theory | Optical sensor |
Packaging Details | 1pc/box, Carton Box |
Port | Any port in China |
Selling Units: | Single item |
Single package size: | 16X16X7 cm |
Single gross weight: | 0.280 kg |
