Product descriptions

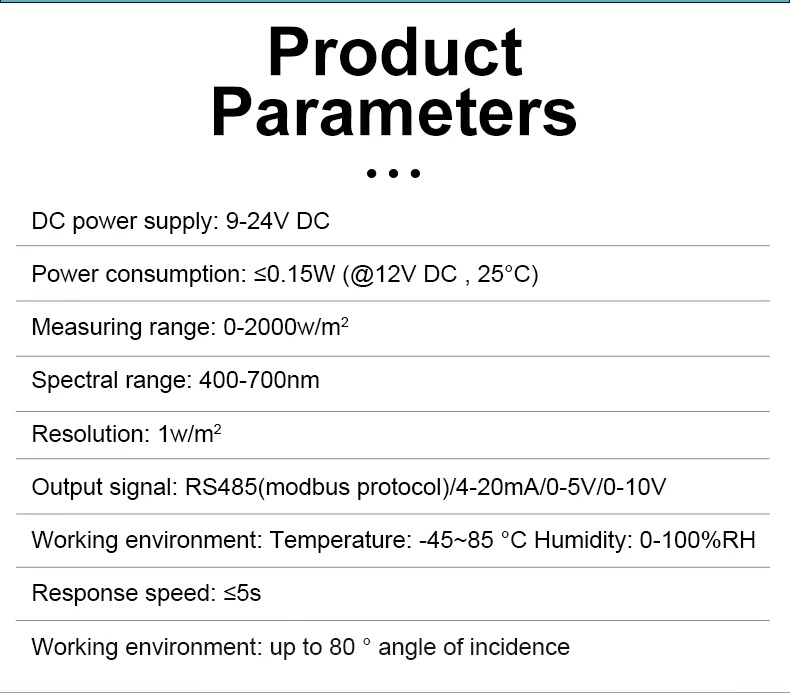

DC power supply	9-24V DC
Power consumption	0.15W (@12V DC,25°C)
Measuring range	0-2000w/m2
Spectral range	400-700nm
Resolution	1w/m2
Output signal	RS485(modbus protocol)/4-20mA/0-5V/0-10V
Working environment: Temperature:	-45-85 °C Humidity: 0-100%RH
Response speed	5s
Working environment	up to 80 °angle of incidence

Type:Solar Radiation Sensor

Use:Solar radiation test

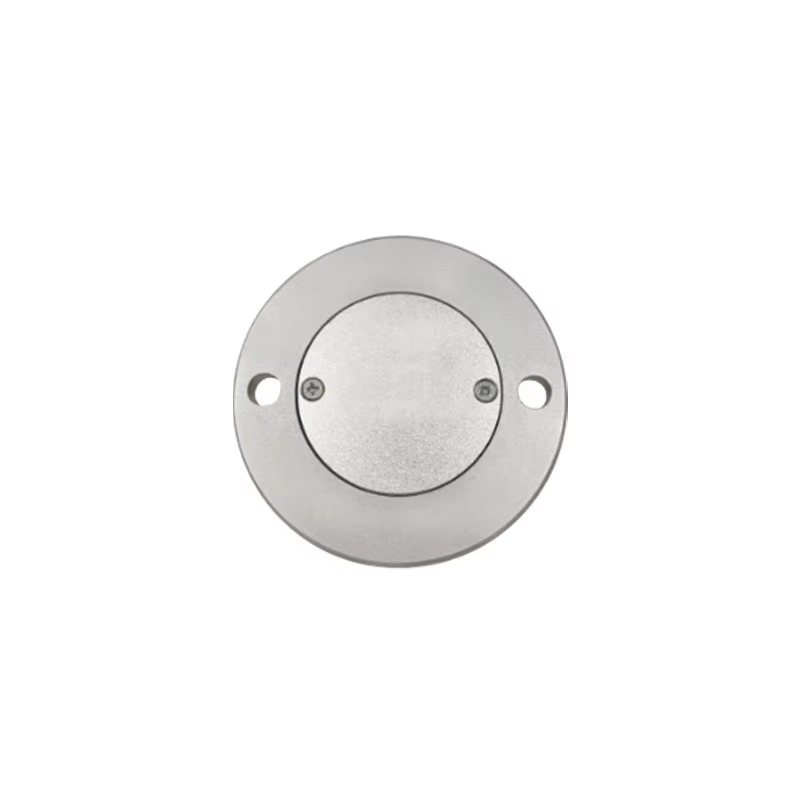

Mounting Type	Mechanical screw mounting
Description	Radiation test
Model Number	PH-LS 03
Series	PH-LS
Features	Light sensitive
Manufacturing Date Code	20240322
Place of Origin	WUHAN, China
Brand Name	PUHUI

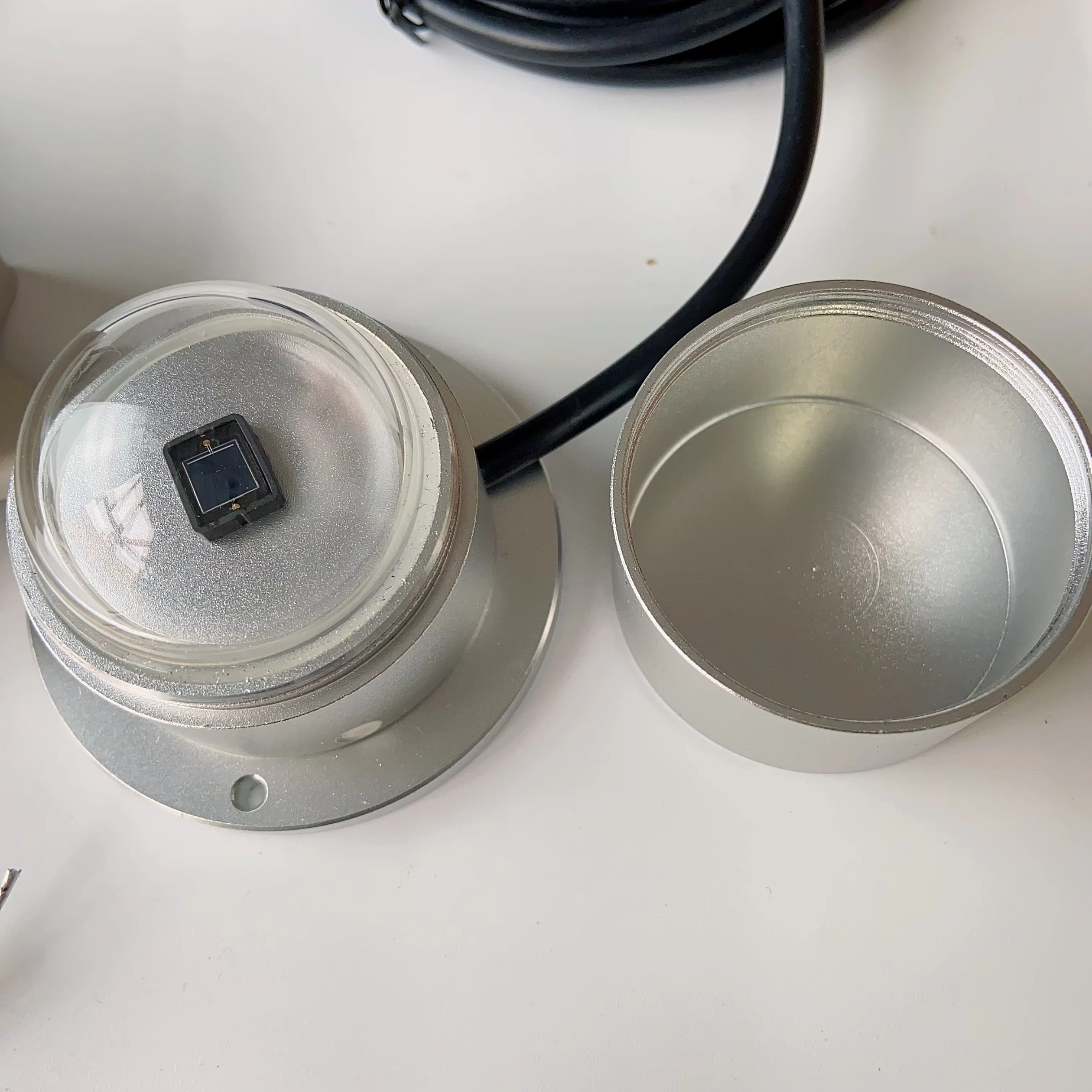

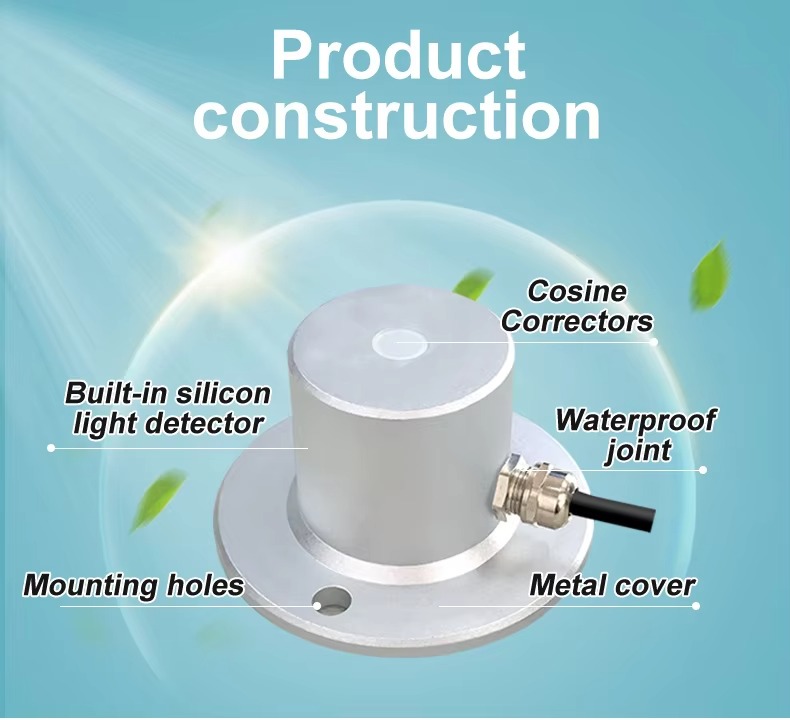

Theory	Silicon controlled
Output	RS485
Description	Solar Pyranometer

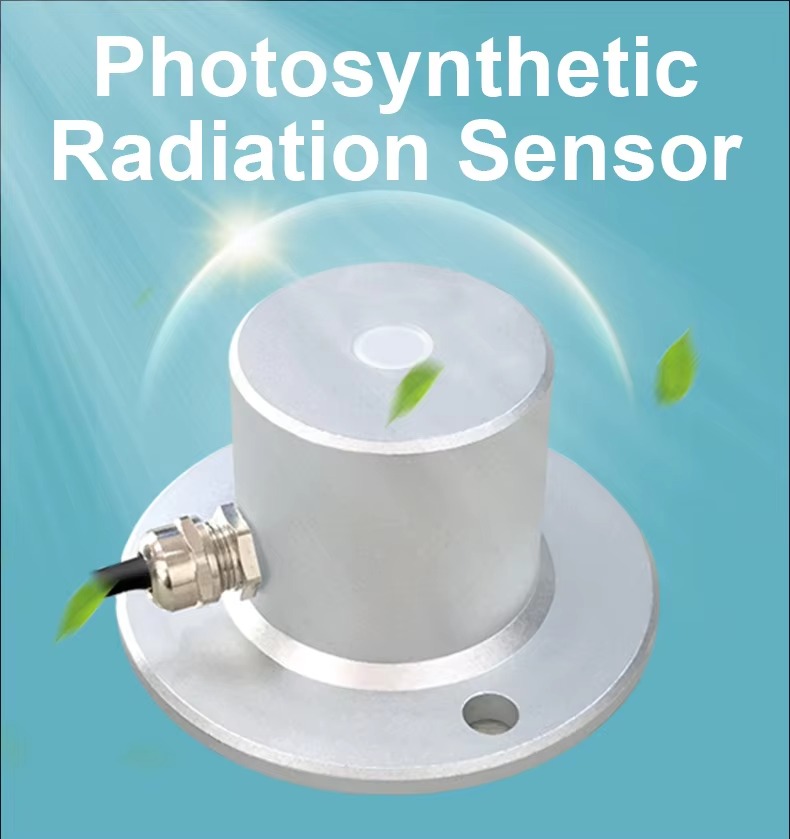

Product name	Precision photosynthetically active radiation digital par sensor
Power supply	DC12V
Communication	RS485/0-5V/0-10V/4-20mA
Measuring range	0-1500W/m2
Spectrum range	0.3~3μm
Waterproof level	IP67
Resolution	1W/m2
Response time	<45s
Working temperature	-20℃~50℃
Nonlinearity	<±5%
