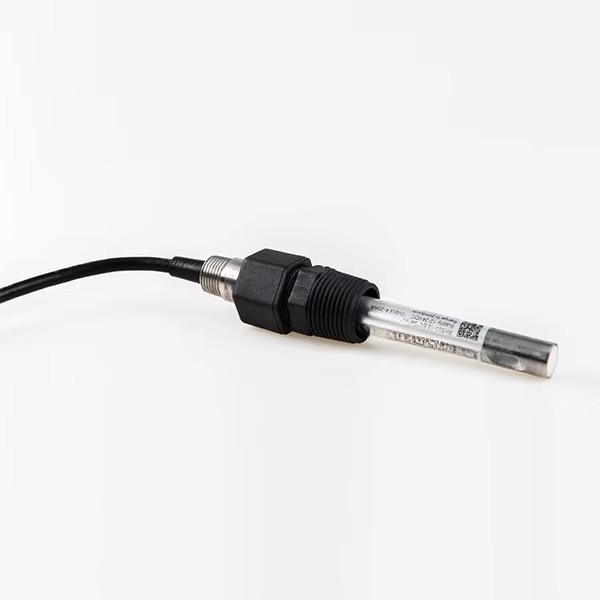

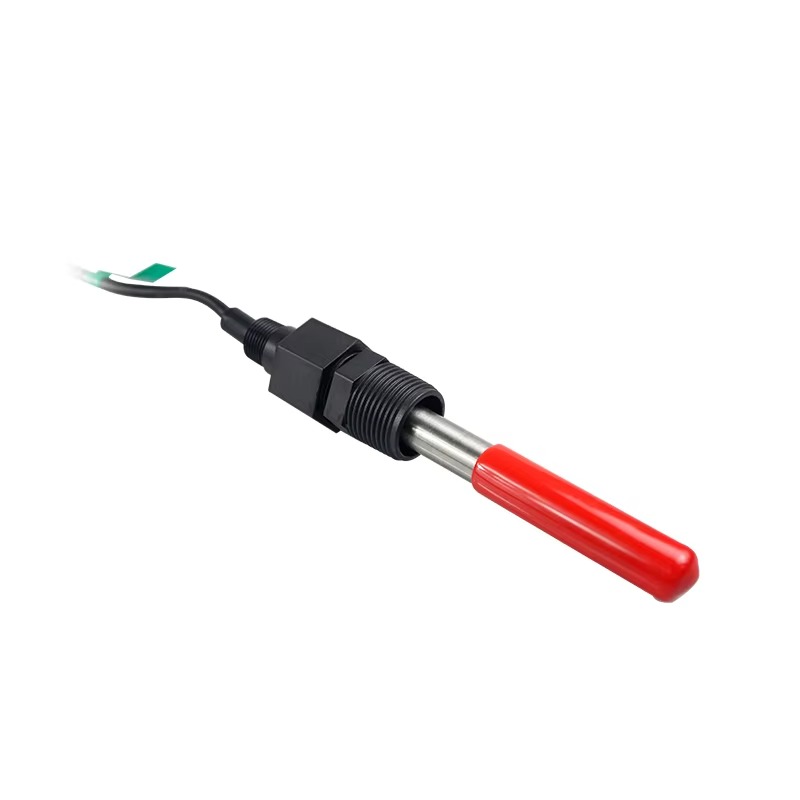

Product Description

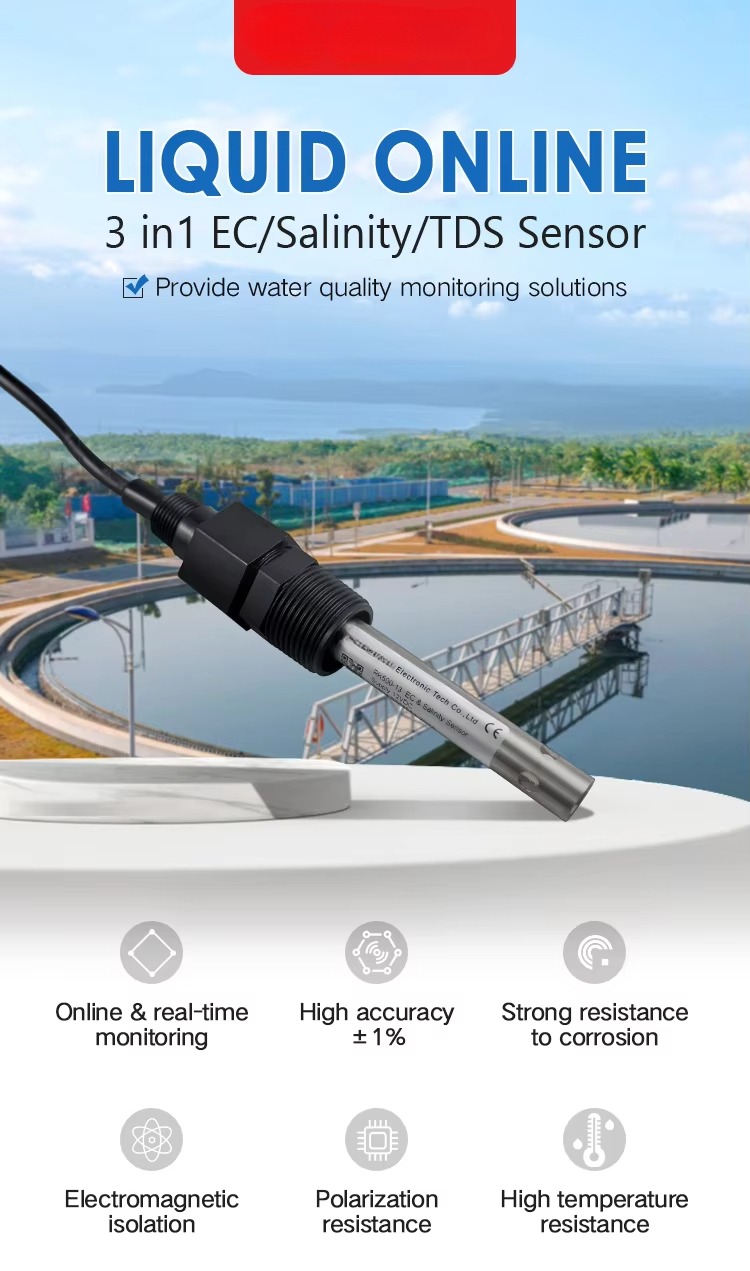

FEATURES
On-line & real-time measurement
titanium alloy electrode & teflon lining
High accuracy
Electromagnetic isolation
Strong resistance to corrosion
Polarization Resistance
High temperature resistance
APPLICATIONS
Environmental protection
Aquaculture
Water source monitoring
Environmental monitoring
Sewage treatment
Oil and gas pipeline corrosion monitoring
TECHNICAL SPECIFICATION
Item | Technical Specification | |
EC | Salinity | |
Measuring medium | Liquid | |

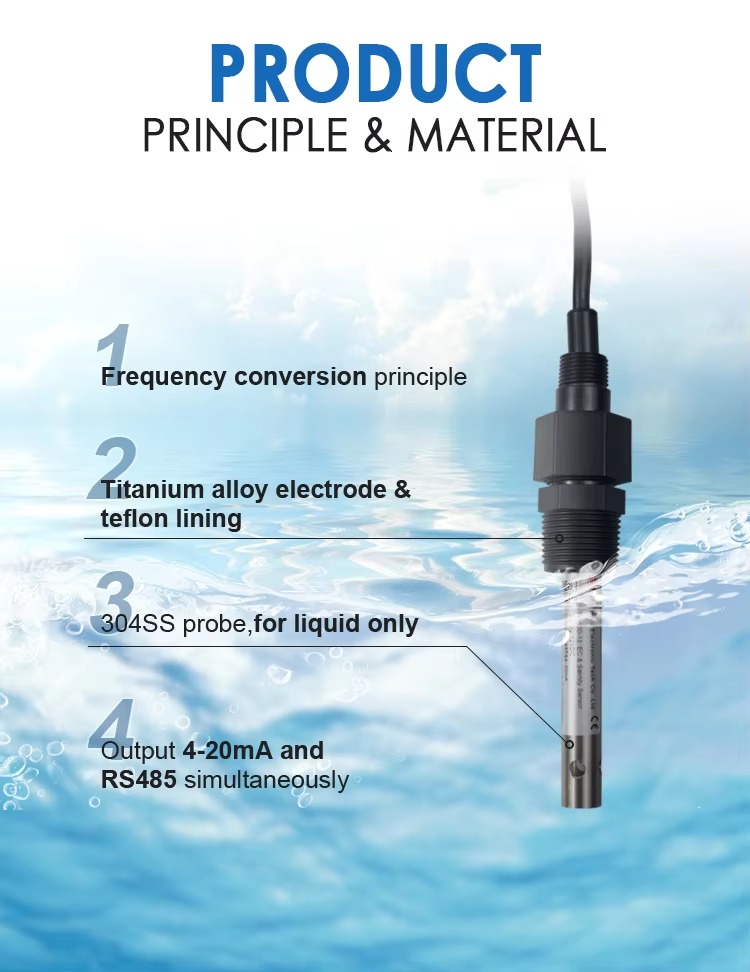

Principle | Frequency conversion method | |
Range | 0~500us/cm, 0~5000us/cm, 0~10000us/cm, 0~200000us/cm (any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm) | 0~100000ppm(mg/L) 1ppm(mg/L)=1000ppb(ug/L) =1000000ppt(ng/L) |
Supply | 7-30VDC(power consumption<0.2W) | |
Accuracy | ±1% | |
Response time | 1s | |
Output Signal | 4-20mA & RS485 at the same time | |
Electrode | Titanium alloy | |

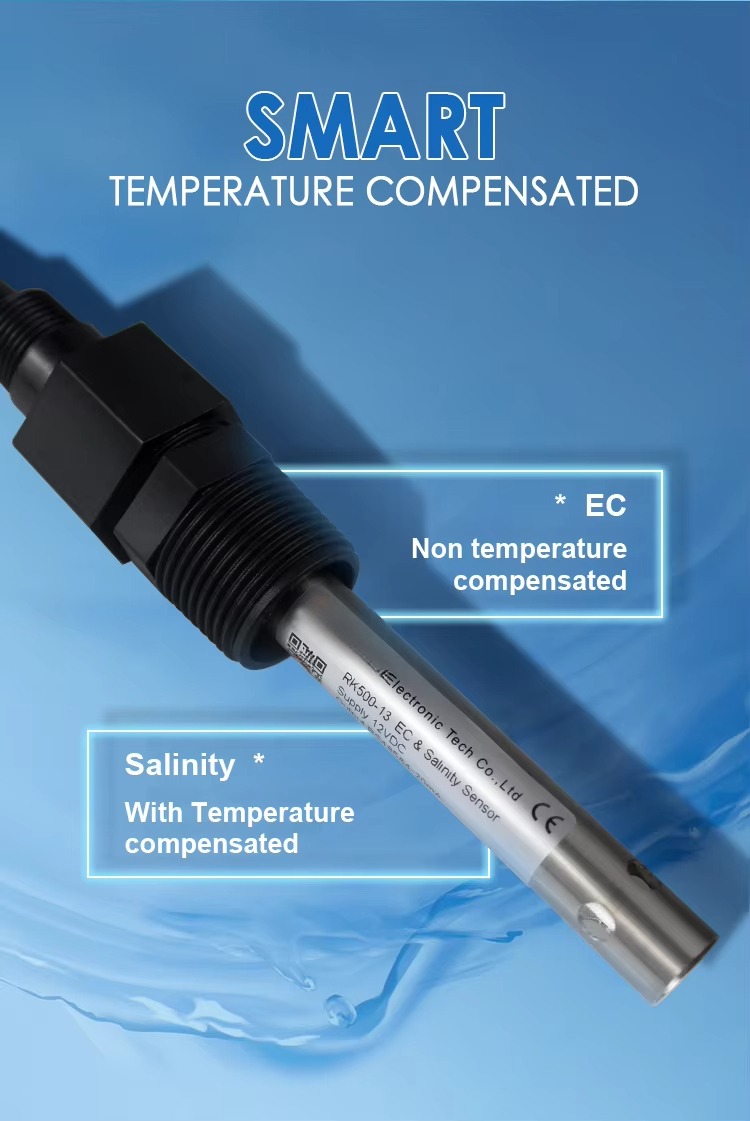

Temperature compensation | Automatic compensation | |
Drift | ≤0.3%FS/24h | |
Operating Temperature | -20℃-+80℃ | |
Probe material | 316L or ABS(Strongly corrosive liquids) | |
Ingress Protection | IP68 | |
Storage | 10-60℃@20%-90%RH | |

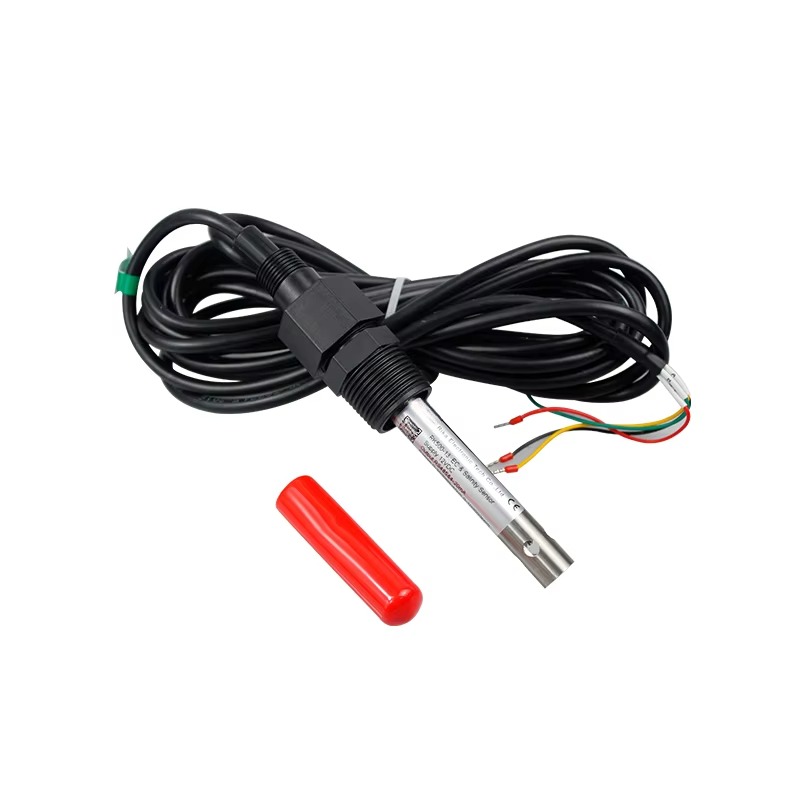

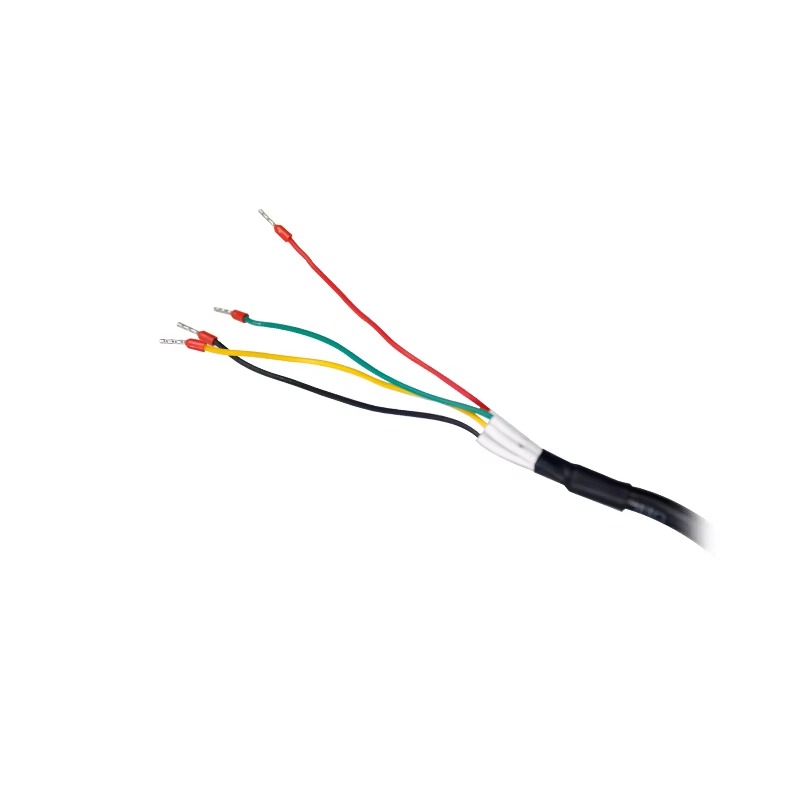

Cable length | Default:5m | |
Use:Liquid Sensor
Model Number | PH500-13 |
Place of Origin | WUHAN, China |
Brand Name | PUHUI |
Theory | Frequency conversion method |
Output | 4-20mA & RS485 at the same time |
Item | EC Salinity Sensor Electrode Meter |
Measuring medium | Liquid |
EC range | 0~500us/cm, 0~5000us/cm, 0~10000us/cm, 0~200000us/cm |
Salinity range | 0~100000ppm(mg/L) |
Accuracy | ±1% |
0utput | 4-20mA &RS485 at the same time |
Supply | 7-30VDC(power consumption<0.2W) |
Probe material | 316L or ABS |
0perating temperature | -20°C - +80°C |
IP grade | IP68 |
Packaging Details | 1 piece per box |
Port | Any port in China |
