Product Description

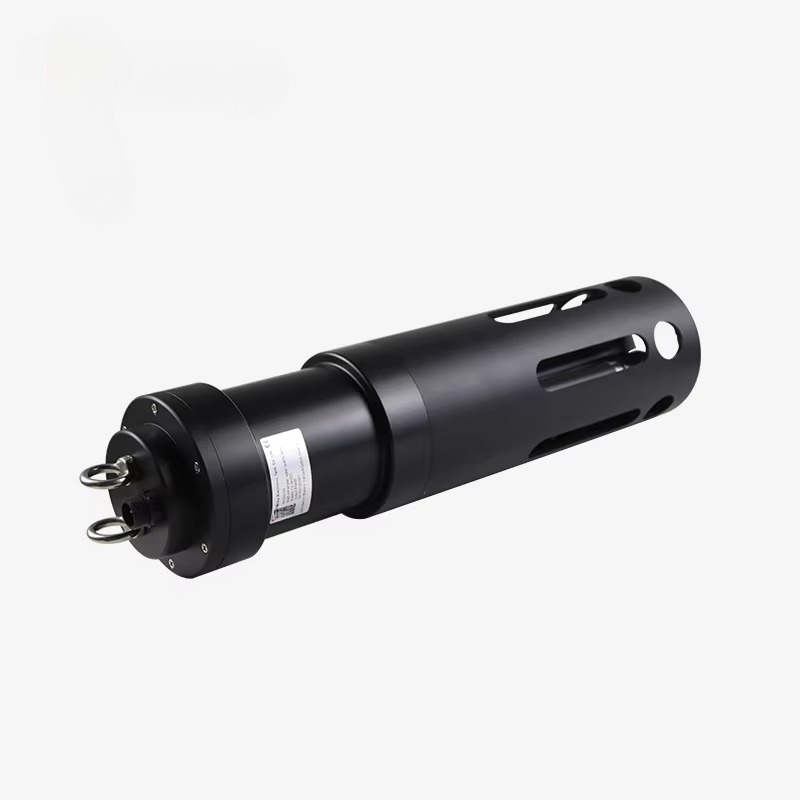

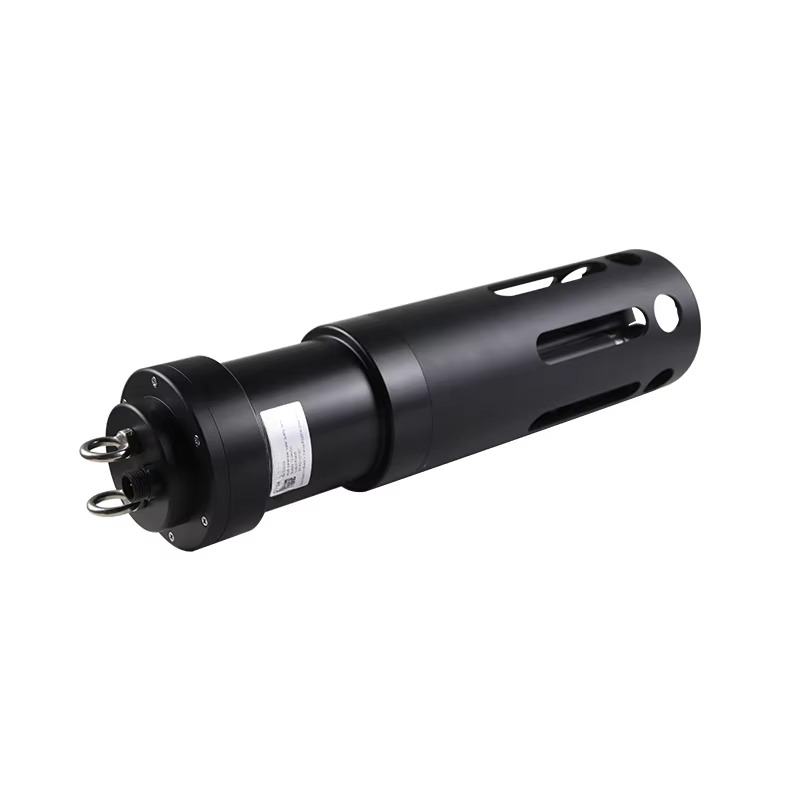

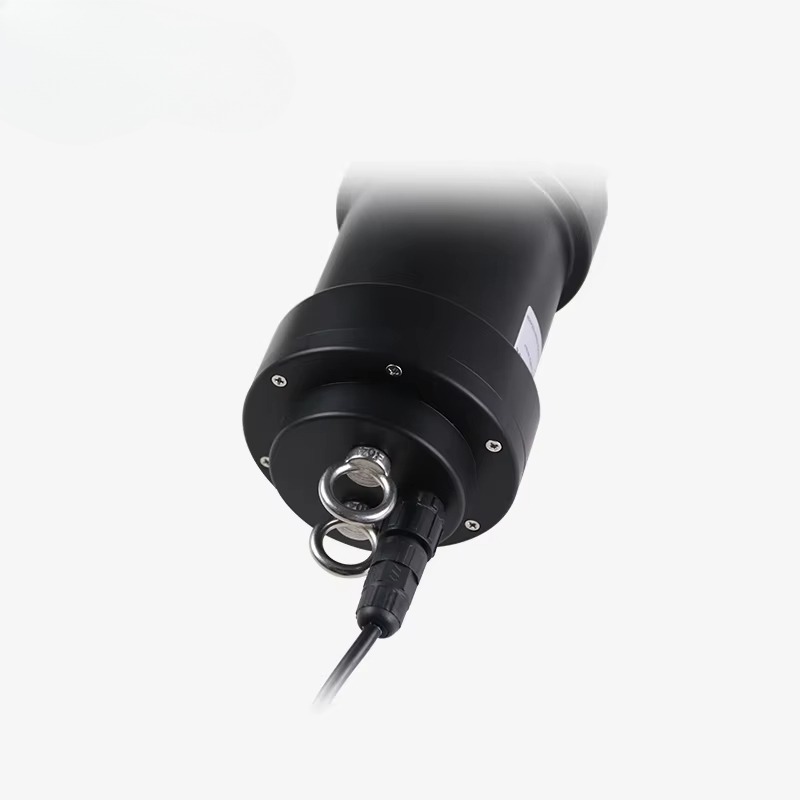

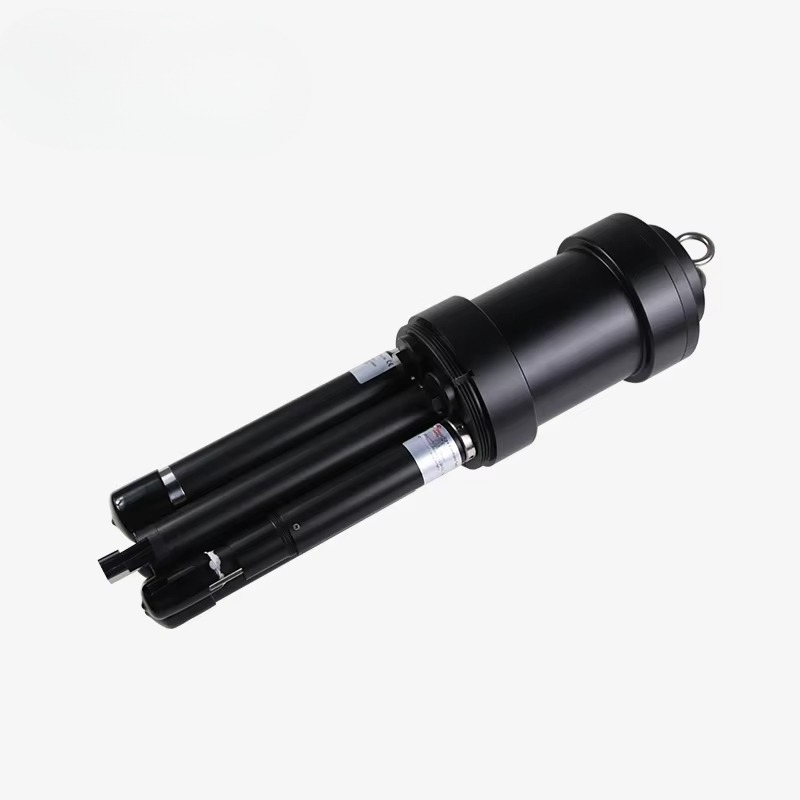

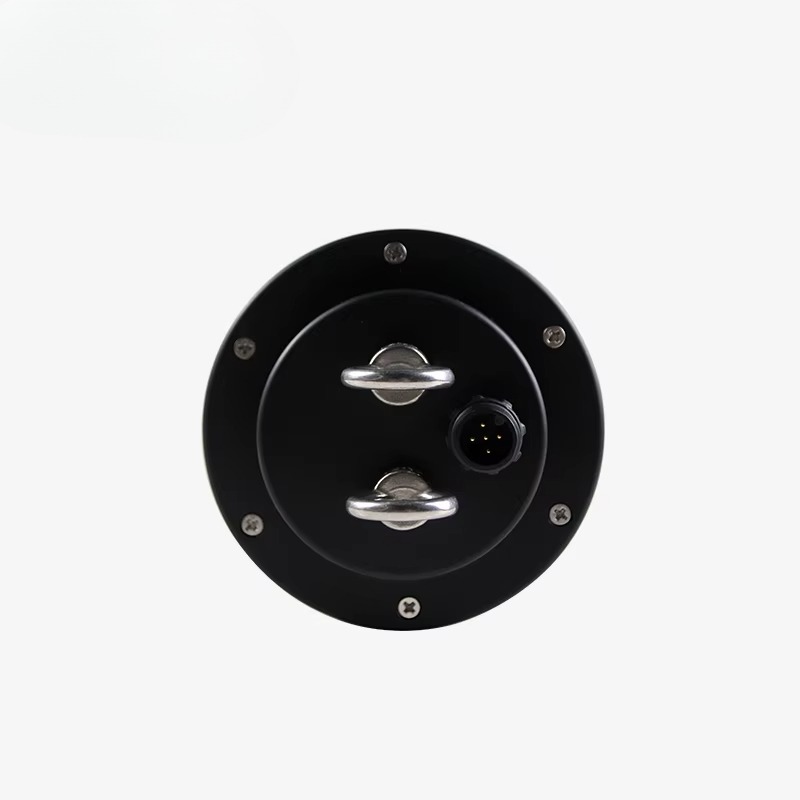

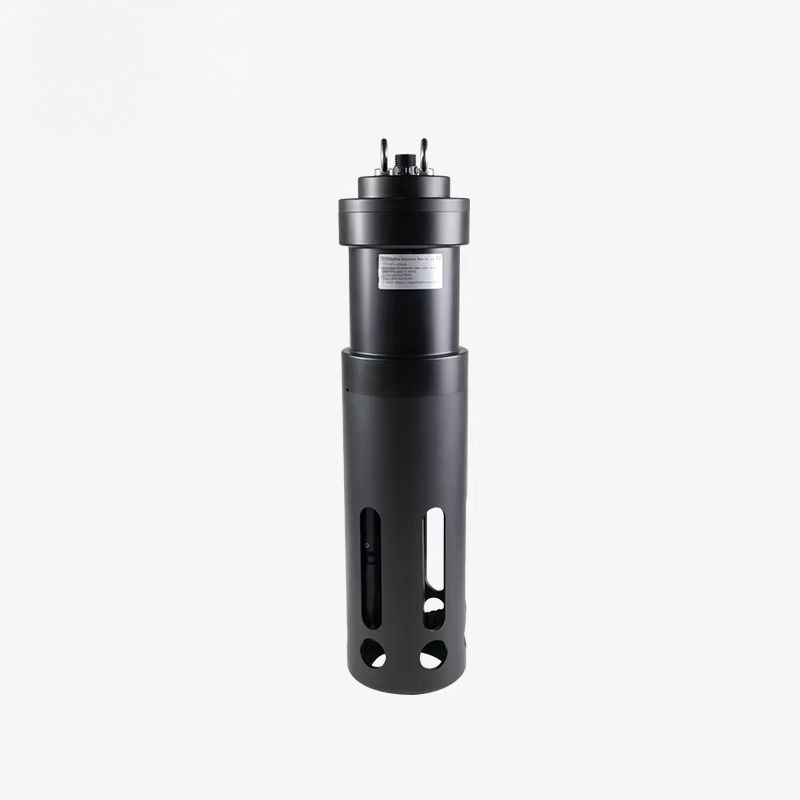

PH500-09 multi-parameter water quality sensor adopts an integrated design and can measure up to 8 parameters at the same time. You can choose DO, COD, pH, ORP, EC/salinity, NH4+, turbidity, etc. Using RS-485 output, Modbus-RTU communication protocol, data can be directly transmitted to the acquisition platform. The multi-parameter water quality sensor is equipped with an automatic cleaning device, automatic cleaning interval time and number of automatic cleaning cycles can be set to adapt to the water quality of different degrees of cleanliness. The automatic cleaning device can effectively clean the surface of the sensor, prevent the adhesion of microorganisms, and greatly reduce the maintenance cost. Each sensor is equipped with a quick-plug waterproof connector, which is easy to disassemble and assemble. The sensor protection cover at the front is used to protect the internal sensor from damage. There are slots around the protection cover, which can effectively prevent large suspended particles and biological damage to the sensor probe, while not affecting the accuracy of measurement.

Features:

• Modbus/RTU communication protocol

• Automatic cleaning device

• Lower maintenance costs

• Integrated design

• Multiple parameters optional

• 8 parameters (including temperature) can be measured at the same time.

 Applications:

•  Environmental protection

•  Water quality monitoring

•  Aquaculture

•  Clean in place(CIP)

•  Sewage treatment

•  Industrial wastewater treatment

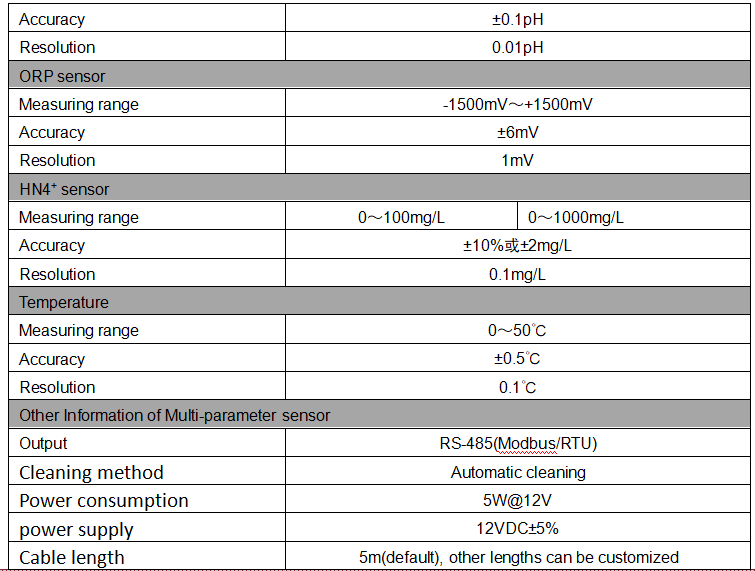

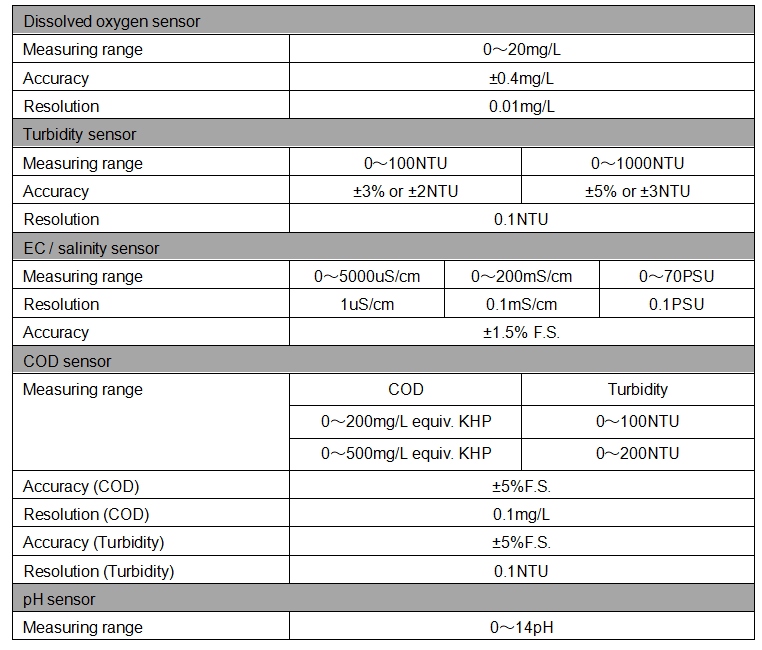

Techincal Specifications:
