  • PH900-09 Offer Sample ABS+ Aluminum Alloy Stations Remote Ce With Rain Gauge Weather Station For Smart Agriculture

    Products Description

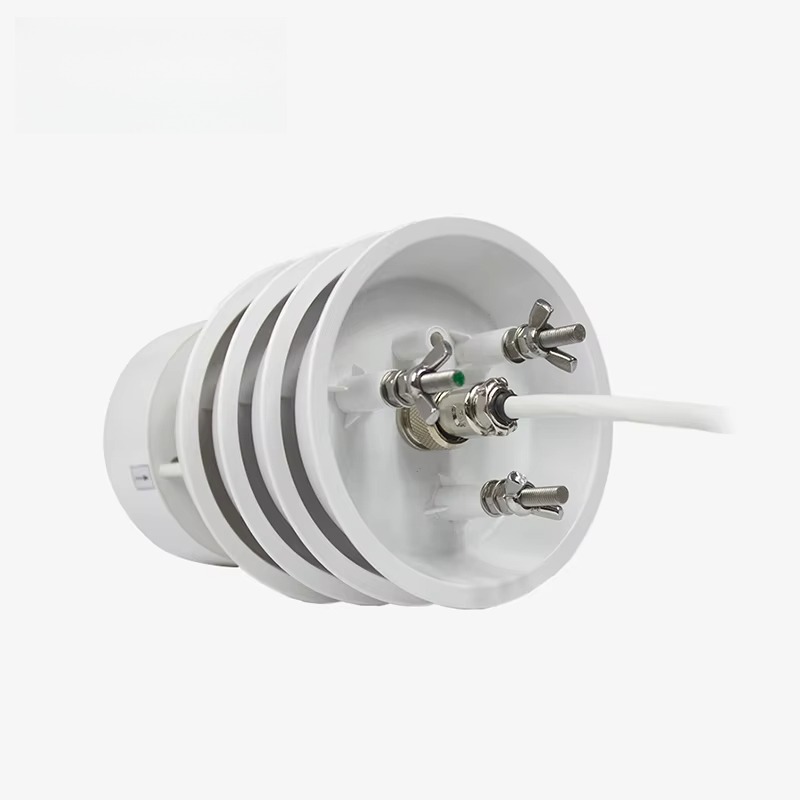

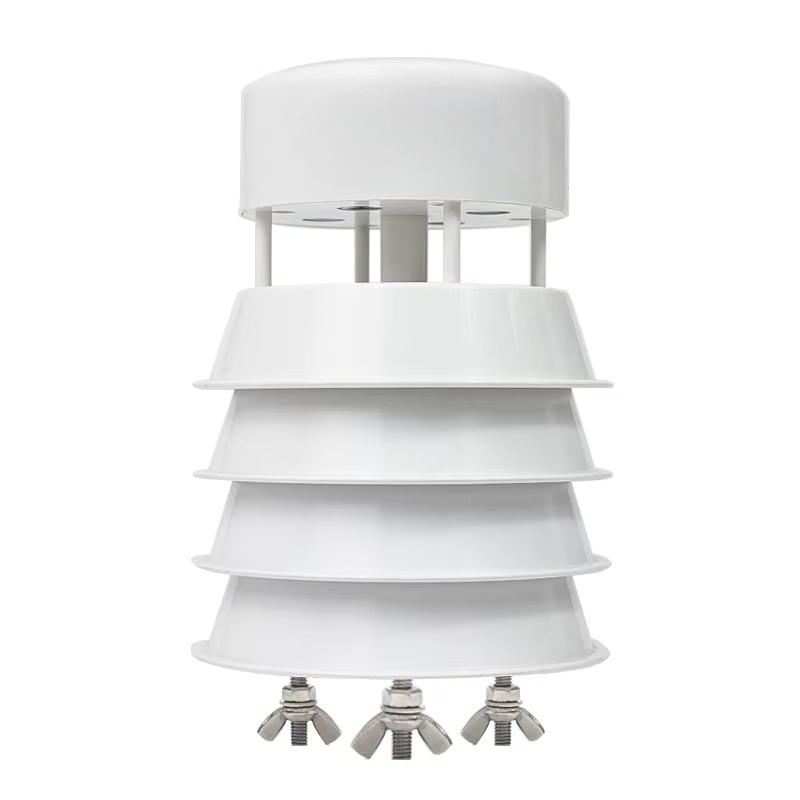

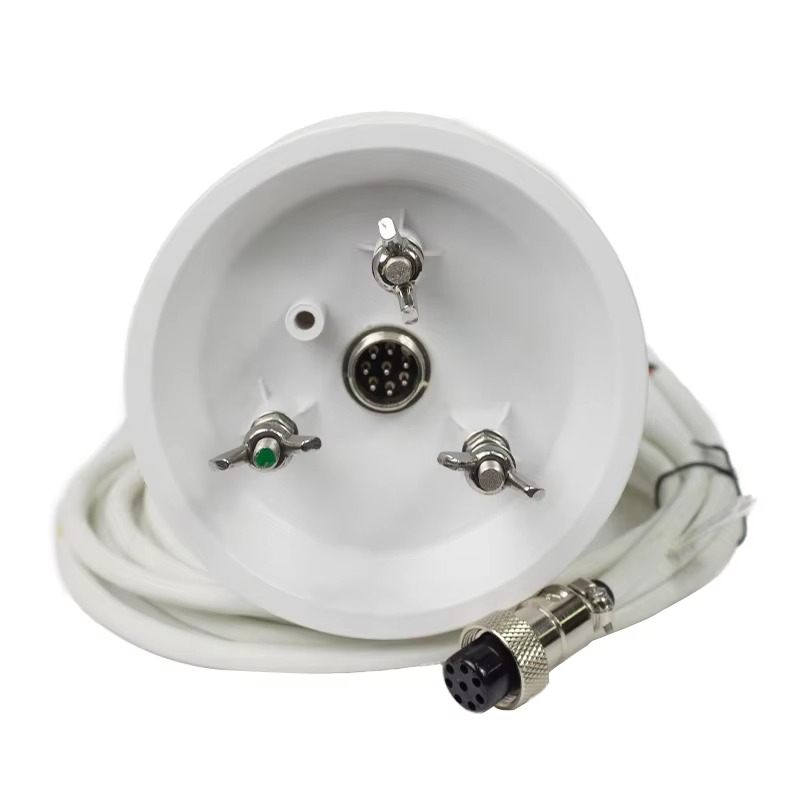

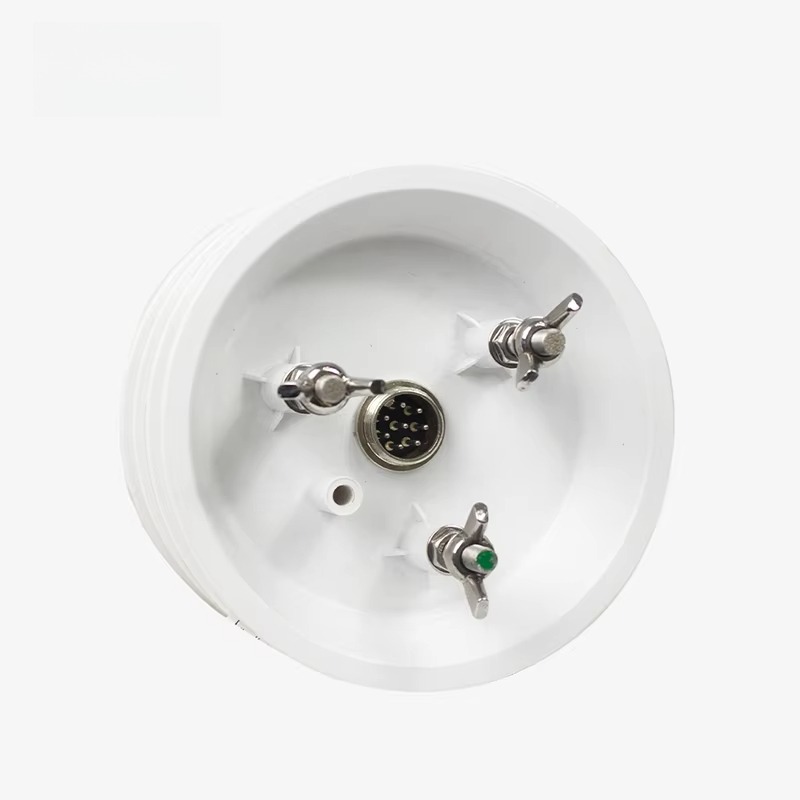

    PH900-09 5 in 1 Ultrasonic Weather Station

    -The upper part material:Aluminum alloy ;

    -The lower part material:Anti-corrosion and anti-radiation ABS

    -Low power consumption :>0.6W

    -Output :RS485

    -OEM Acceptable

    Product Introduction

    RK900-09 miniature ultrasonic weather station is a fully digital detection, high-precision sensor, which is integrated by the principle of ultrasonic wind speed and direction sensor, high-precision digital temperature, humidity, pressure sensor, can accurately and quickly detect wind speed, wind direction, atmospheric temperature, atmospheric humidity and Atmospheric pressure, built-in signal processing unit can output corresponding signals according to user needs, high-strength structure design can work reliably in harsh climate environment, can be widely used in meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation, etc.

    Product Features

    * High accuracy,fast response * Easy to install, all-weather measurement * RS485 output * High-strength structural design

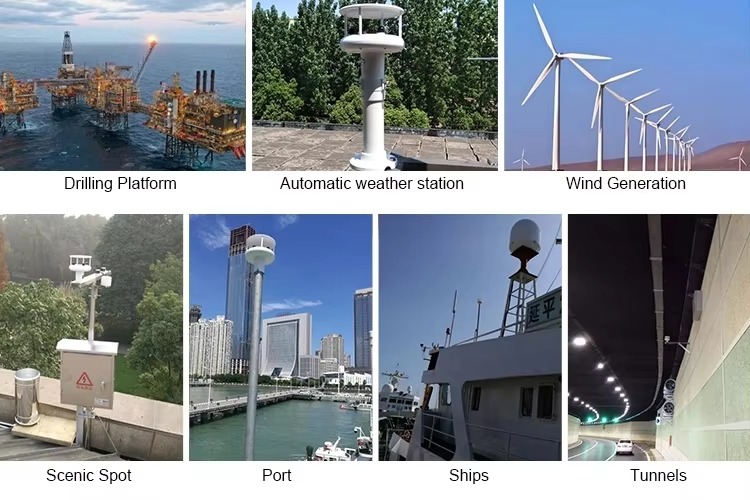

    Applications

    * Unattended meteorological monitoring system * Mobile meteorological monitoring system * Electric power safety monitoring * Solar or wind power generation * Port and navigation of the ship * Scenic region * Meteorological science research
    * Agriculture

    Product Paramenters

    Measure item

    Principle

    Range

    Resolution

    Accuracy

    Wind speed

    Ultrasonic

    0-40m/s

    0.01m/s

    ±0.5+2%FS

    Wind direction

    Ultrasonic

     0-359º

    ±3°

    Atmospheric temperature

    MEMS

    -40-+100℃

    0.1℃

    ±0.3℃

    Atmospheric humidity

    MEMS

    0-100%RH

    0.1%RH

    ±3%

    Atmospheric pressure

    MEMS

    10-1100hPa

    0.1hpa

    ±1.5hPa

    Supply

    12VDC

    Output

    RS485

    Communication Protocol

    Modbus-rtu

    Power consumption

    0.6W

    Operating temperature

    -40-+80℃

    IP Rating

    IP65

    Main material

    ABS+ Aluminum alloy









    Contact Us
Product details

Other attributes

Mounting Type

bracket installation

Description

Ultrasonic weather station

Model Number

PH900-09

Place of Origin

WUHAN, China

Brand Name

PUHUI

Item

ultrasonic weather station

Principle

Ultrasonic

Signal output

RS485

Power supply

12VDC

Measuring parameters 1

Wind speed, wind direction

Measuring parameters 2

Air temp, RH and pressure

IP Rating

IP65

Communication Protocol

Modbus-rtu

Power consumption

0.6W

Main material

ABS+ Aluminum

Packaging and delivery

Selling Units:

Single item

Single package size:

28X19X21 cm

Single gross weight:

1.200 kg
