Product Description

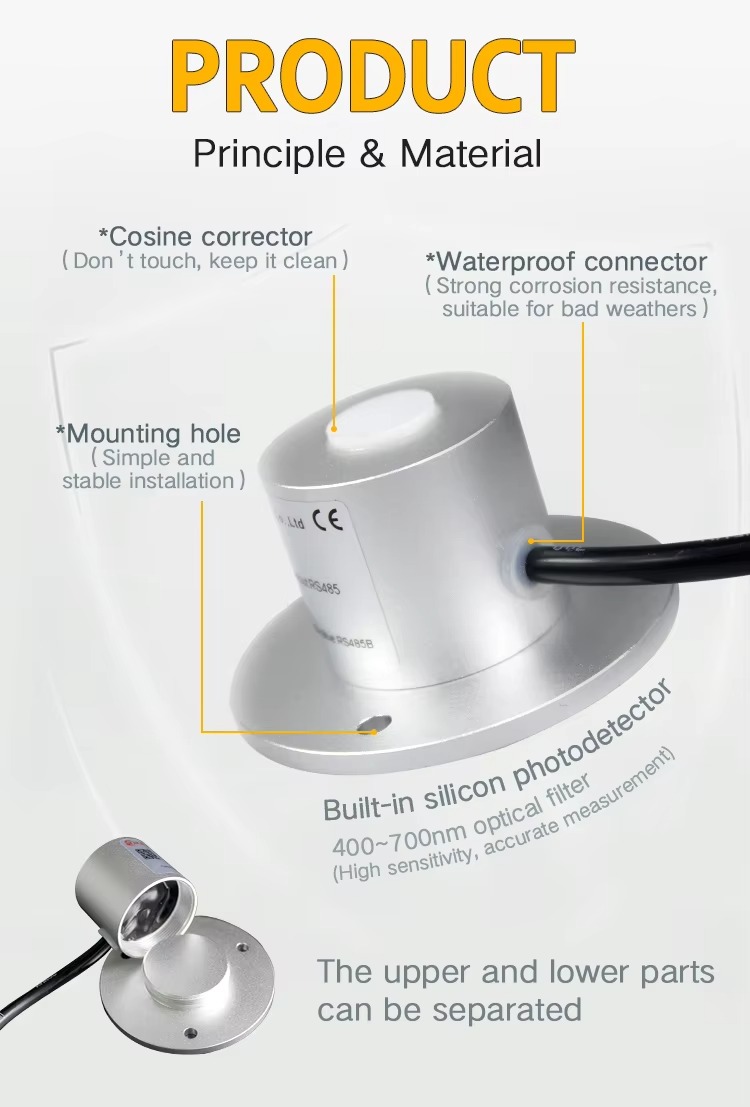

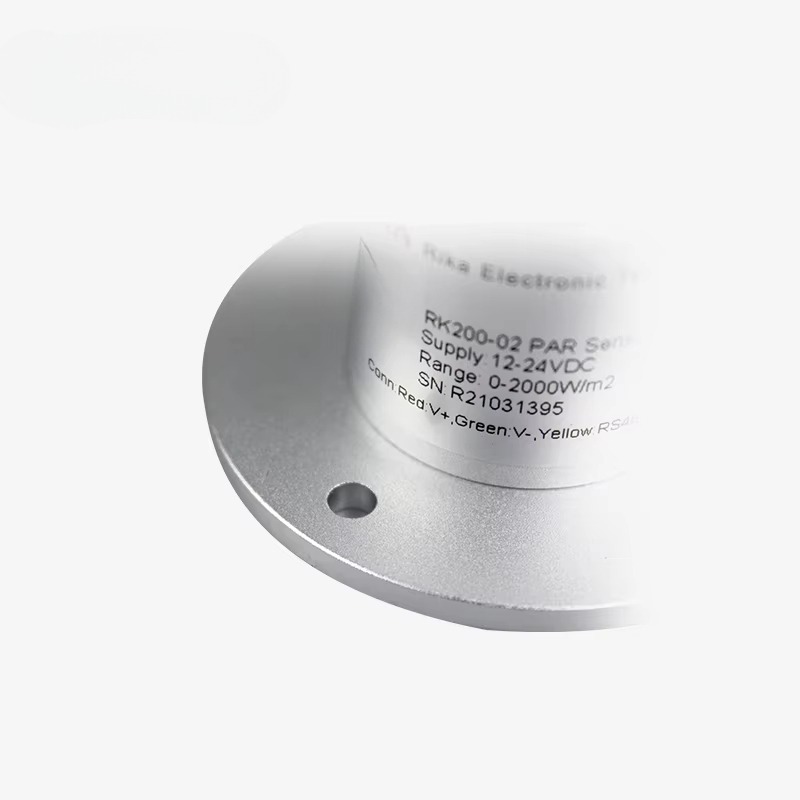

 The PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by thesilicon-photodetector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol*m2*s.

Features:

• Metal construction

• Harsh environment workable

• High sensitivity

• No power supply measurement

• Compact size for easy use

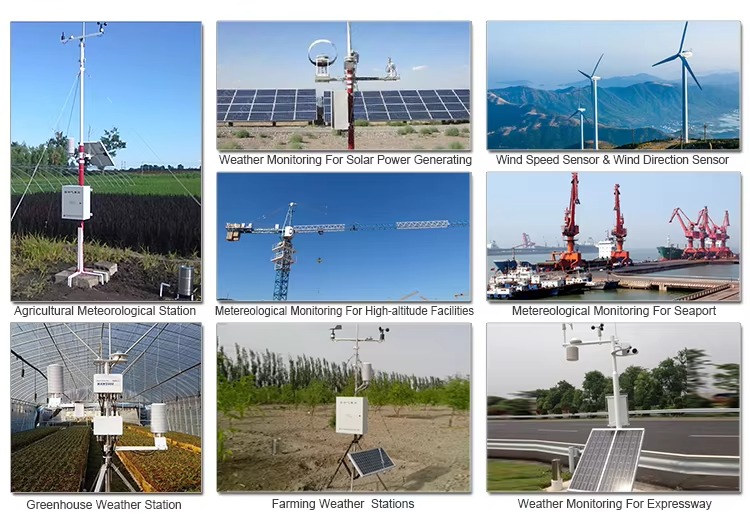

Application:

• Agrometeorological research


• Crop growth monitoring

• Ecological research

• Environment surveillance

• Greenhouse control

Technical Specification:

Output Characteristics:

* 0-2000mV

Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000 Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/160

* 4-20mA

Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/0.8 (Where I is output current value,unit:μA ) Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )
