Place of Origin

WUHAN, China

Brand Name

PUHUI

Output

Digital Sensor

Brand

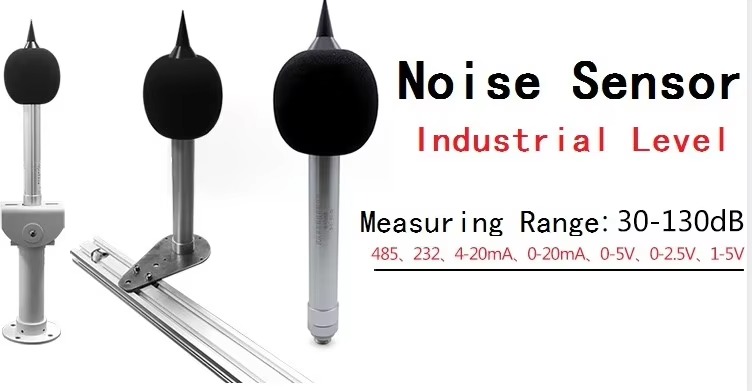

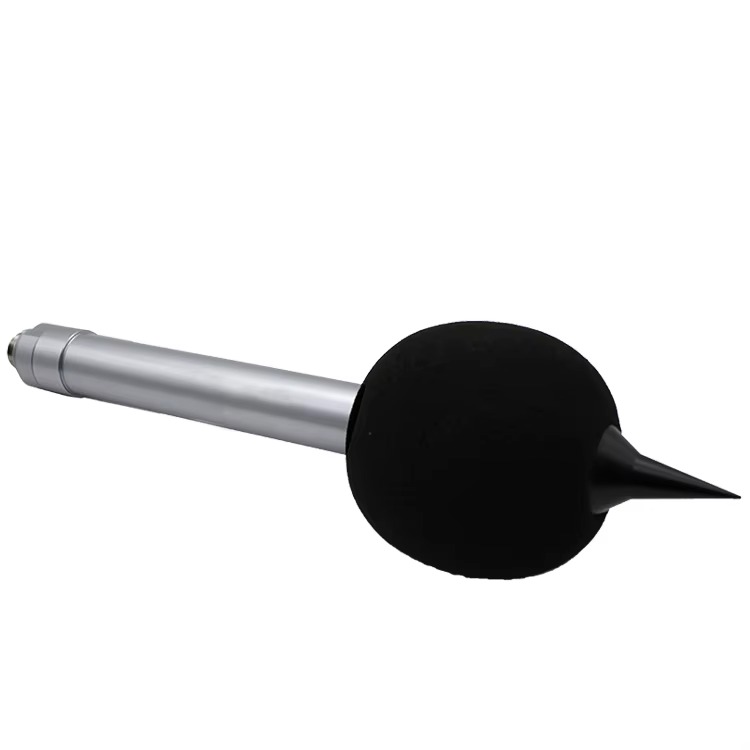

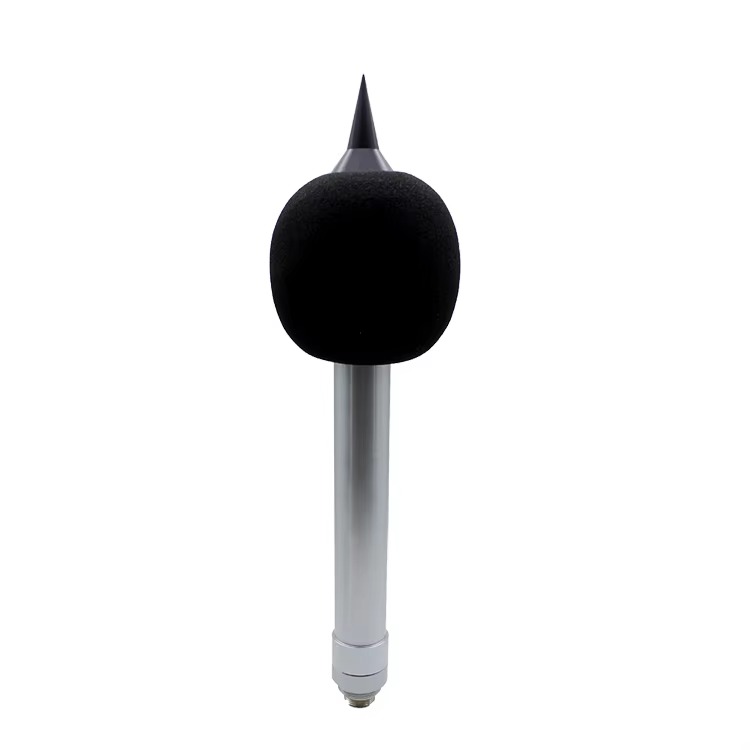

Noise sensor

Voltage - Supply

DC12V / DC9-30V

Output Type

RS485/RS232/4-20mA/0-5V

Operating Temperature

-40℃~80℃

Resolution (Bits)

0.1dB

Package / Case

Aluminum

Frequency

20Hz - 12.5kHz

Name

noise sensor

Power Supply

5v DC or 9-30VDC

Measuring range

30~130dB(A)

Accuracy

±3dB

Output signal

RS485 (Modbus protocol) RS232 4-20mA 0-5V 0-2.5V

Frequency Range

20Hz ---- 12.5kHz

Ingress Protection

IP55

Response time

≤200ms

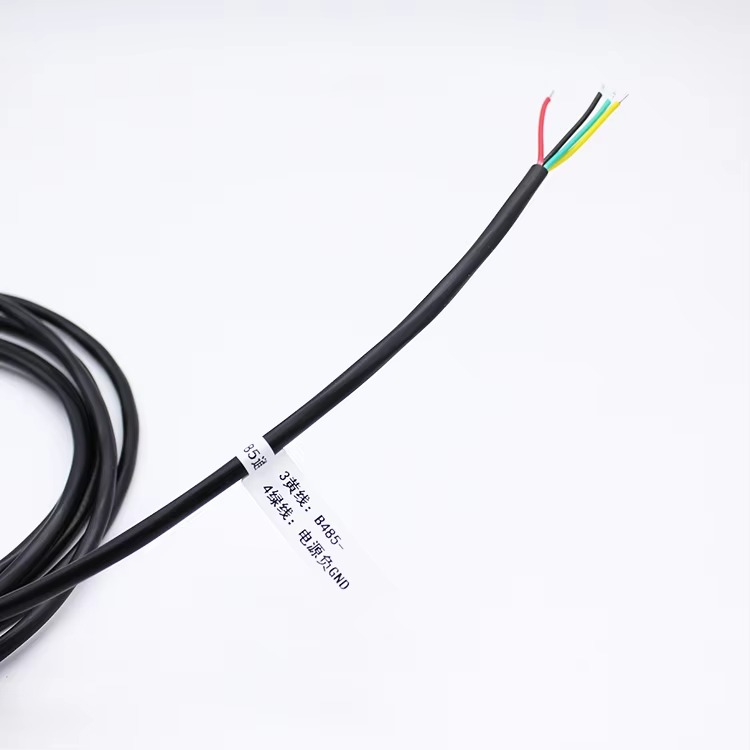

Cable length

2.5m

microphone size

0.5 inch

Selling Units:

Single item

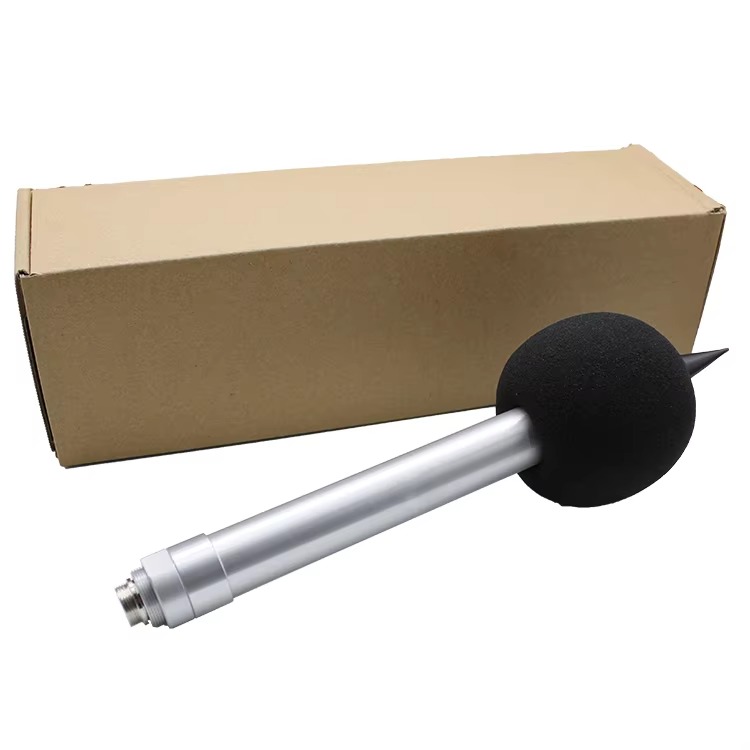

Single package size:

11X12X35 cm

Single gross weight:

0.650 kg
