  • PH330-01 Outdoor Barometric Temperature Humidity Pressure Sensor Transmitter with Radiation Shield for Weather Station

    Products Description

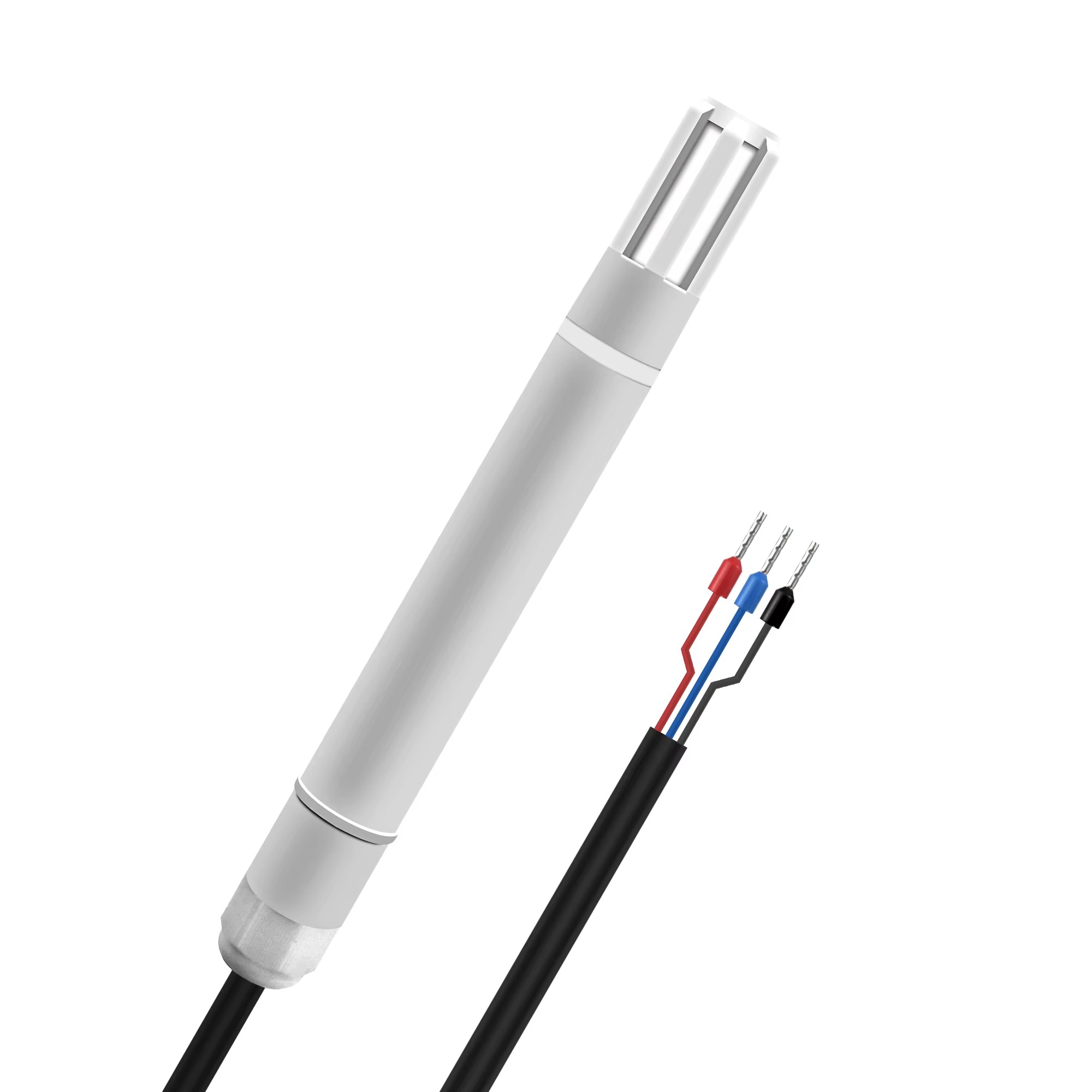

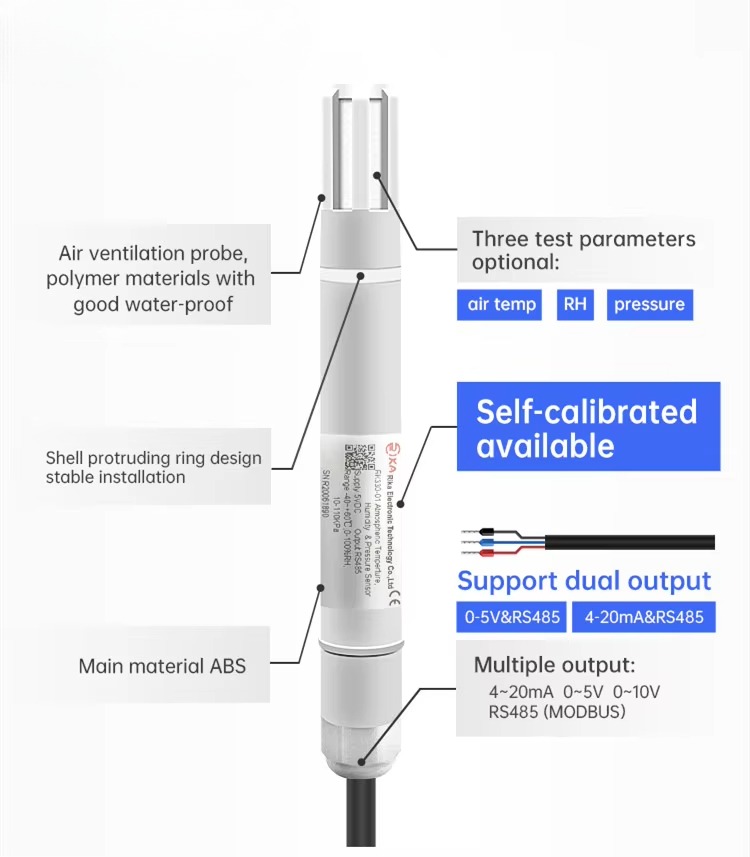

    PH330-01 Atmospheric Temperature & Humidity Sensor

    -Probe Material:ABS

    -Multiple Output :4-20mA,0-5V,0-10V,RS485,IIC

    -Built-in the water-proof and anti-UV shelter

    -Widely used in agriculture, forestry, meteorology

    -Calibration Certificate,ISO9001,TUV Certificate


    Product Introduction

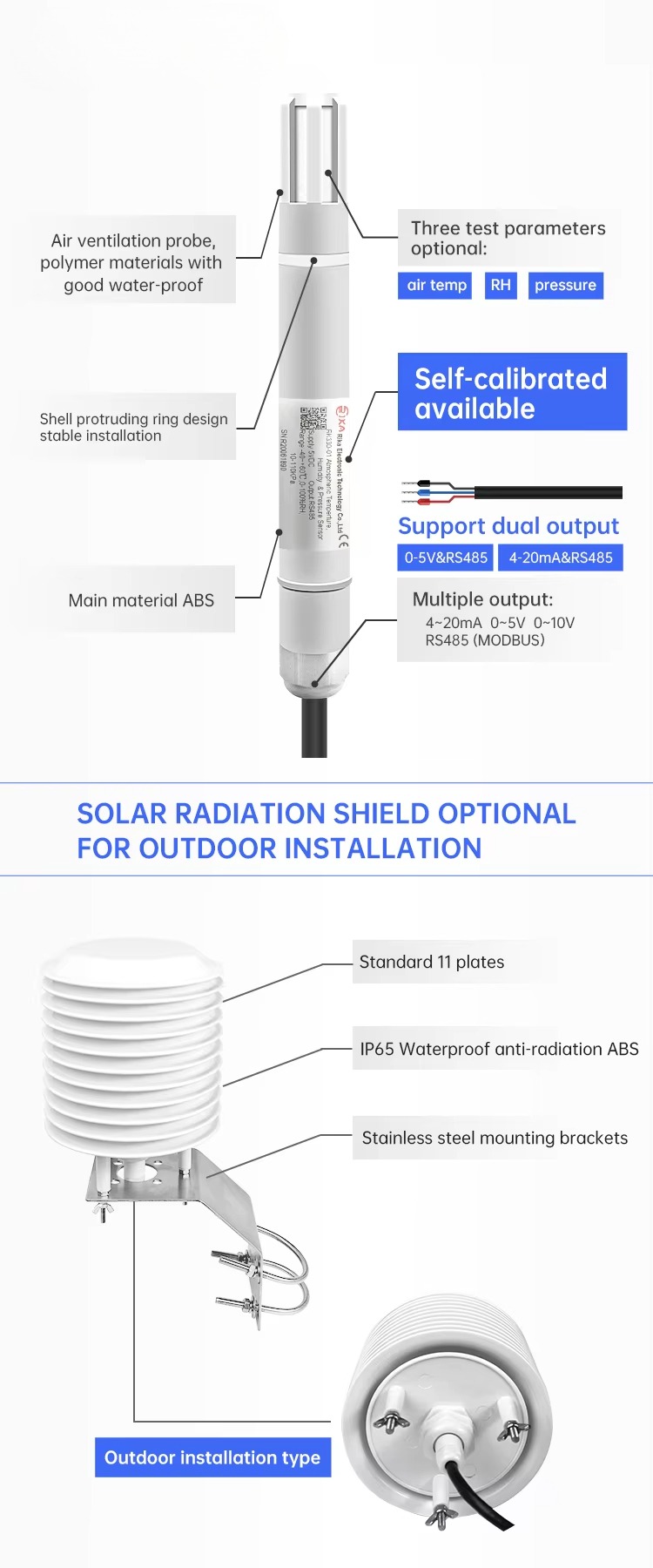

    PH330-01 Atmospheric Temperature & Humidity Sensor is a professional measurement of air temperature, relative humidity & barometric pressure. Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.This model also can be equipped with 11 plates radiation shield(RK95-01) to protect the sensors from solar radiation and rain.

    Product Features

    * High Sensitivity
    * Fast response time
    * Long service life
    * Low consumption
    * Good stability of output
    * High temperature and high humidity environment for long-term use
    * Can integrated temperature humidity air pressure at the same time

    Applications

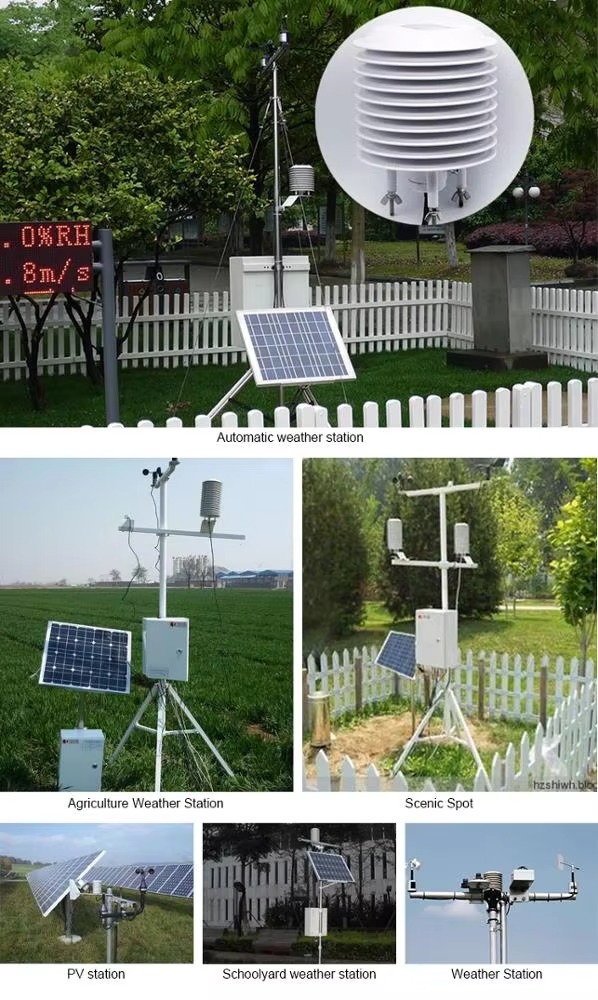

    * Environmental monitoring
    * Livestock farm
    * Storage
    * Forestry
    * Greenhouse
    * Agriculture

    Product Paramenters

    Item

    Technical Specification

    Temperature

    Humidity

    Pressure(optional)

    Range

    -40-60℃

    0-100%RH

    10-110kPa(100-1100hPa)

    Resolution

    0.1℃

    0.5%RH

    0.1hPa

    Accuracy

    ±0.5℃

    ±3%RH

    ±1hPa

    Supply

    5VDC, 12-24VDC

    Output Signal

    4-20mA,0-5V,0-10V,RS485(MODBUS),IIC

    Current Consumption

    <20mA

    Operating Temperature

    -40℃-+80℃

    Ingress Protection

    IP65

    Storage

    10-60℃@20%-90%RH

    Weight(unpacked)

    120g

    Probe material

    ABS

    Radiation Shield(optional)

    RK95-01,11 plates

    *4-20mA,0-5V, 0-10V output is proper for one or two measurement parameters. If three elements required, only RS485 output is acceptable.


    Contact Us
Product details

Key attributes

Industry-specific attributes

Warranty:one year

Other attributes

Place of Origin

WUHAN, China

Customized support

OEM

Brand Name

PUHUI

Model Number

PH330-01

Item

Temperature Humidity Sensor

Air moisture

0-100%RH

Air termepatreu range

-40~120°C

Accuracy

±0.5℃;±3%RH

Output Signal

RS485,4-20mA,0-5V

Power supply

12~24VDC

Working temperature

-40~80°C

Probe Shell Material

ABS

Solar radiation shield(optional)

11plates, ABS plastic, with mountinng bracket

Cable length

1,5m standard

Packaging and delivery

Packaging Details

1pc/box,

Port

Any port in China

Selling Units:

Single item

Single package size:

27X10X10 cm

Single gross weight:

0.500 kg
