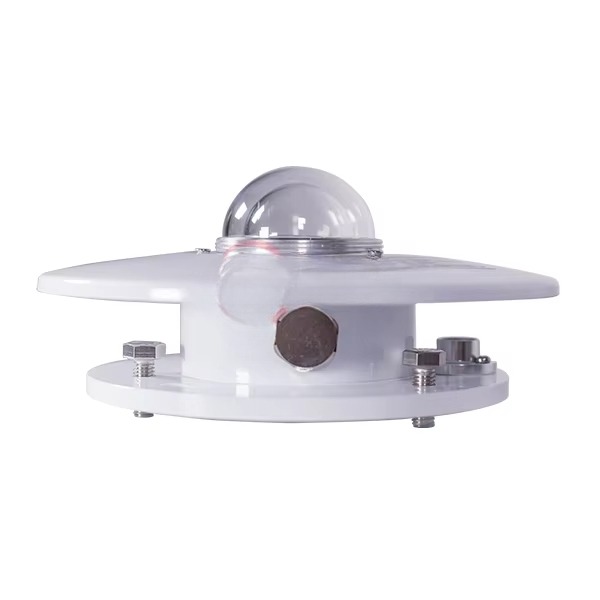

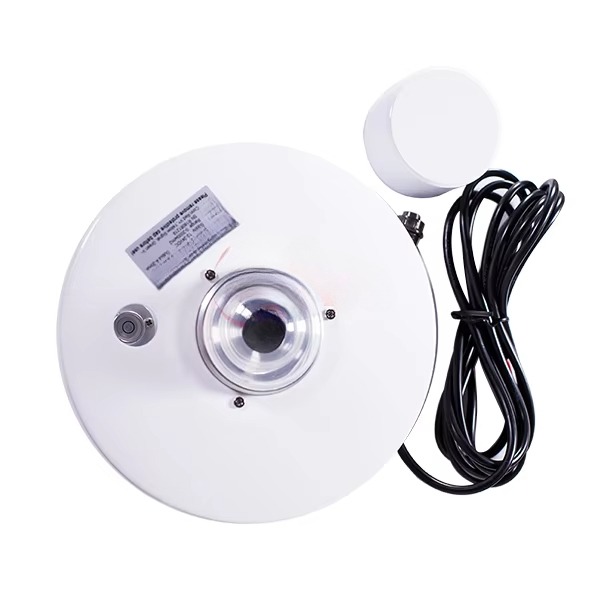

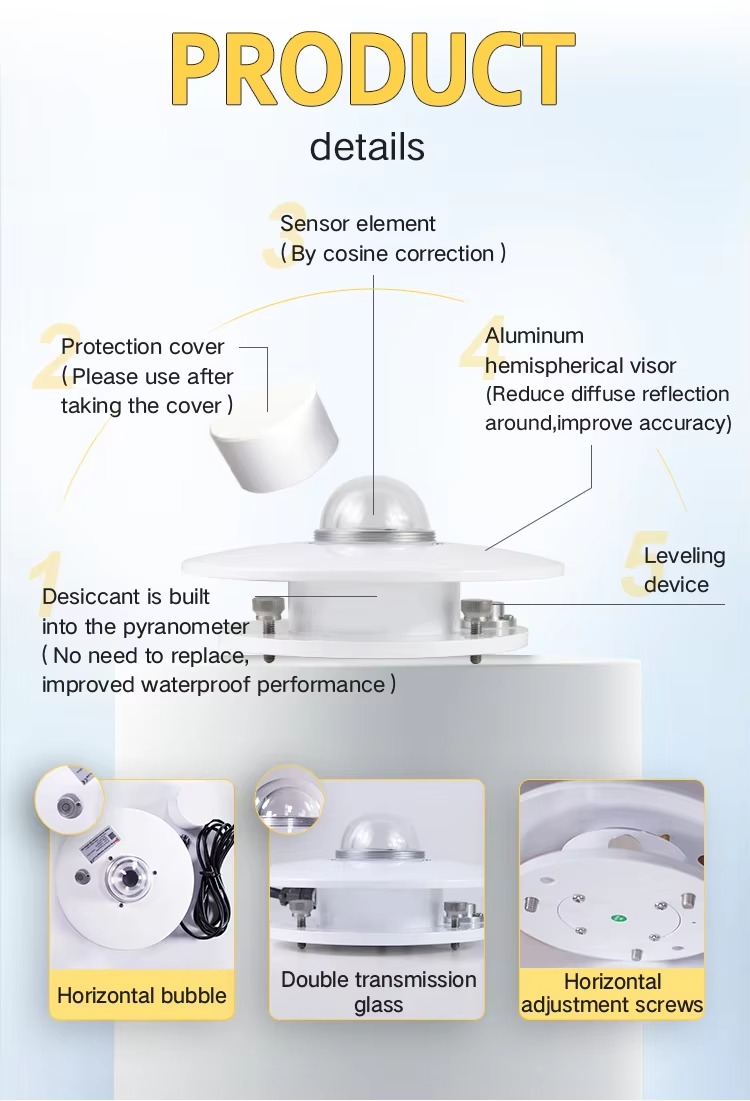

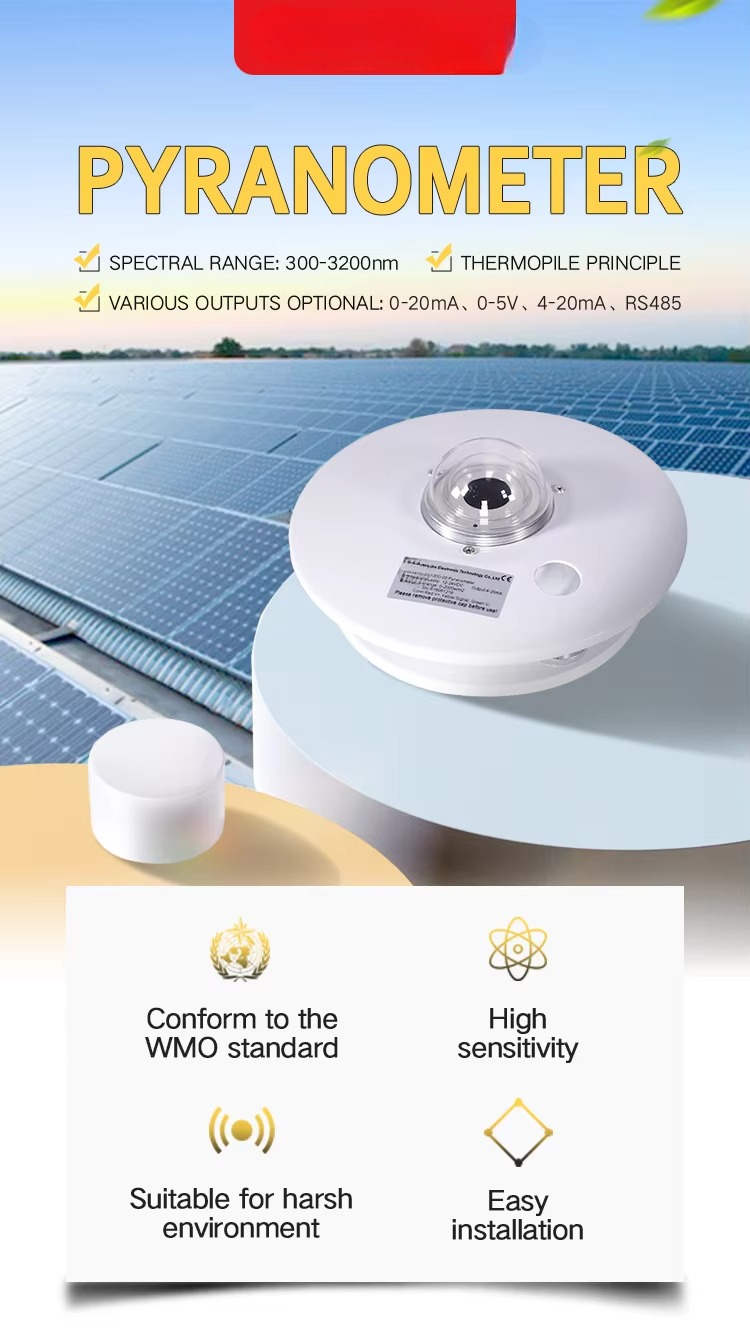

Product Description
PH200-03 Pyranometer is produced based thermoelectric principle; sensing elements are made by winding - plated thermopiles with multi contacts.Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body,temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect ,temperature compensation circuit designed here to reduce the effects to products properties.
PH200-03 Pyranometer Technical Specification:
Item | Specification |
Spectral range | 280-3000nm |
Supply | 12-24VDC |
Range | 0-2000W/m² |
Output | 0-20mV,0-5V,4-20mA,RS485 |
7-14μV*W-1*m² | |
Iinternal resistance | approximate to 800Ω |
Non-linearity | <±1% |
Measuring angle | 2π solid angle |
≤13s(95%) | |
Stability | ±2%/year |
Cosine correction | ≤±7%(Solar elevation angle=10°) |
Temperature effect | ±3%(-10℃-+40℃) |
Operating temperature | -40℃-+85℃ |
Weight(unpacked) | 0.58kg |
Dimension | ø143*120mm |
Ingress Protection | IP65 |
Storage Condition | 10℃-60℃@20%-90%RH |
Thermal Radiation Zero Offsetradiation | ±10W/m²
|
| Temperature change zero | ±3W/m²
|
1.If you choose to 0-20 mv signal output, without power supply.
2. If you choose to RS485 output signal, the need to increase the external signal conversion module(98*66*49mm).
Use:Solar Radiation Meter

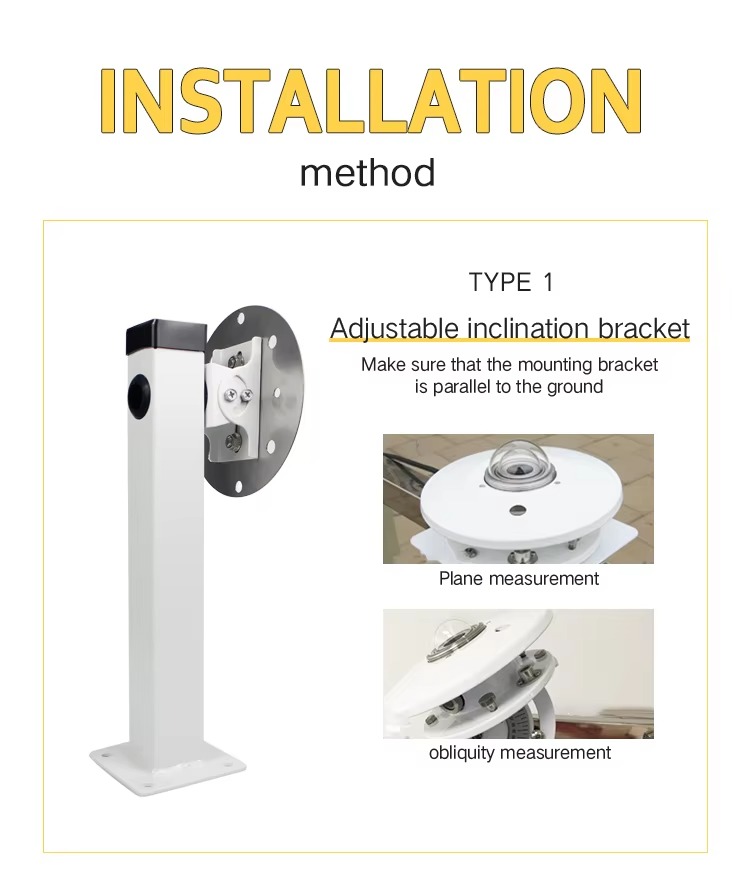

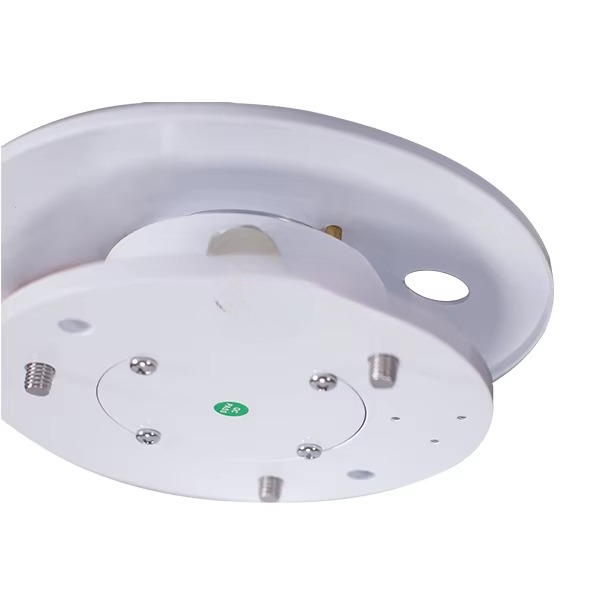

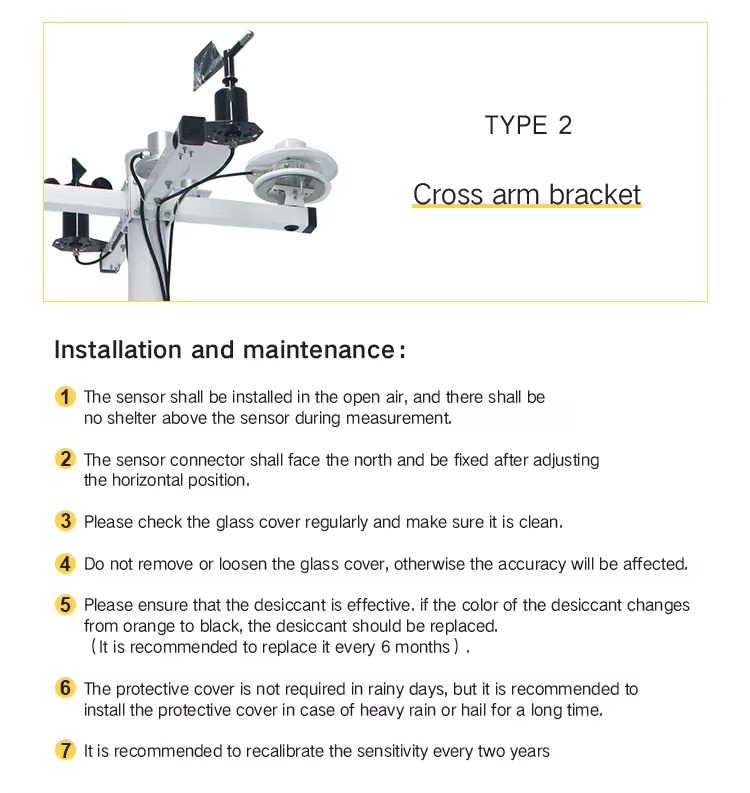

Mounting Type | .. |
Description | .. |
Model Number | PH200-03 |
Place of Origin | WUHAN, China |
Brand Name | PUHUI |
Theory | thermoelectric |
Output | 0-20mv, 4-20mA, 0-5V, RS485 |
Item | Pyranometer |
Measure spectral range | 300-3200nm |
Range | 0-2000w/m2 |
Sensitivity | 7-14uv/w/m-2 |
Output | 0-20mv, 4-20mA, 0-5V, RS485 |
Non linearity | <±2% |
Supply | 12-24v, 5v |
response time | 35 seconds |
measureing angle | 2TT solid angle |
Housing materal | Aluminum alloy |
Packaging Details | 1 piece per carton |
Port | Any port in China |
Selling Units: | Single item |
Single package size: | 34X30X16 cm |
Single gross weight: | 3.600 kg |
