Product Description

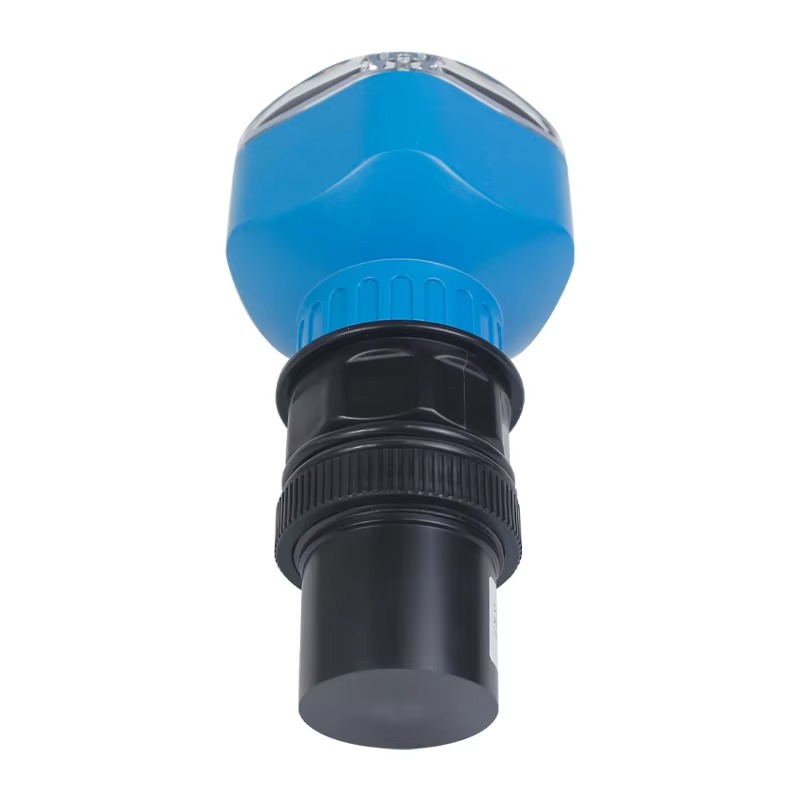

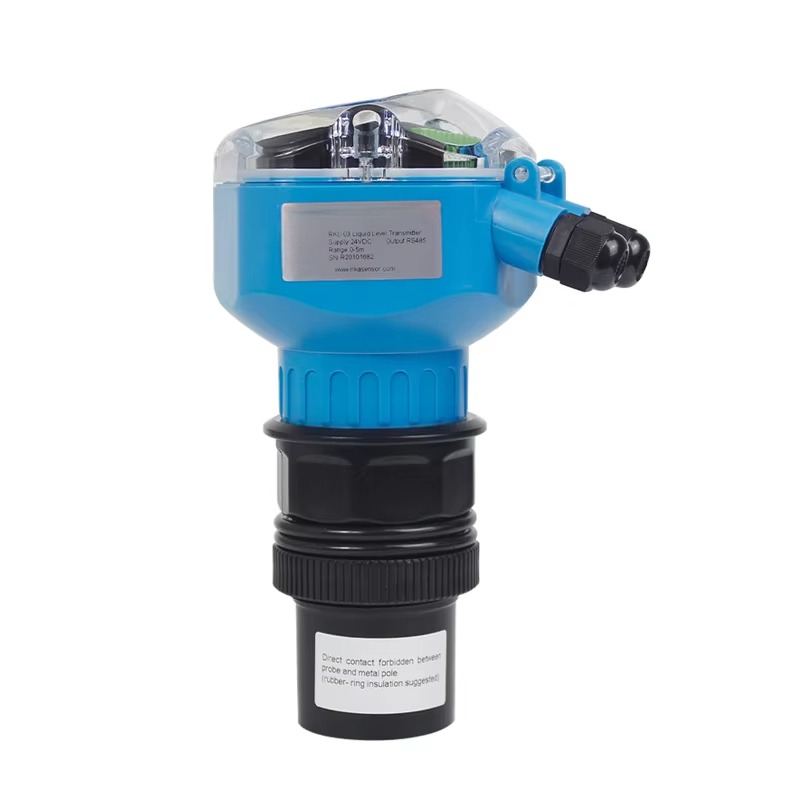

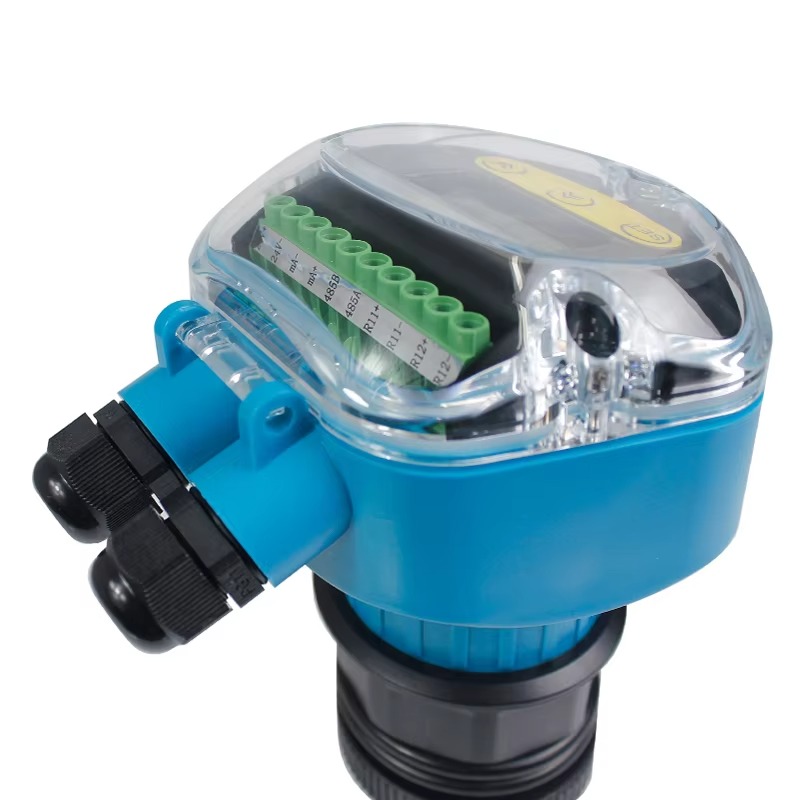

PHL-03 Ultrasonic Liquid Level Transmitter is a kind of non-contact, high reliability, high cost performance, easy installation and maintenance of material level measuring instrument.It doesn't have to contact medium can meet the requirements of most of the material level measurement.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.The product can cooperate with RK600-01 data logger or general recording instrument is used.
FEATURES
Range of up to 60 meters

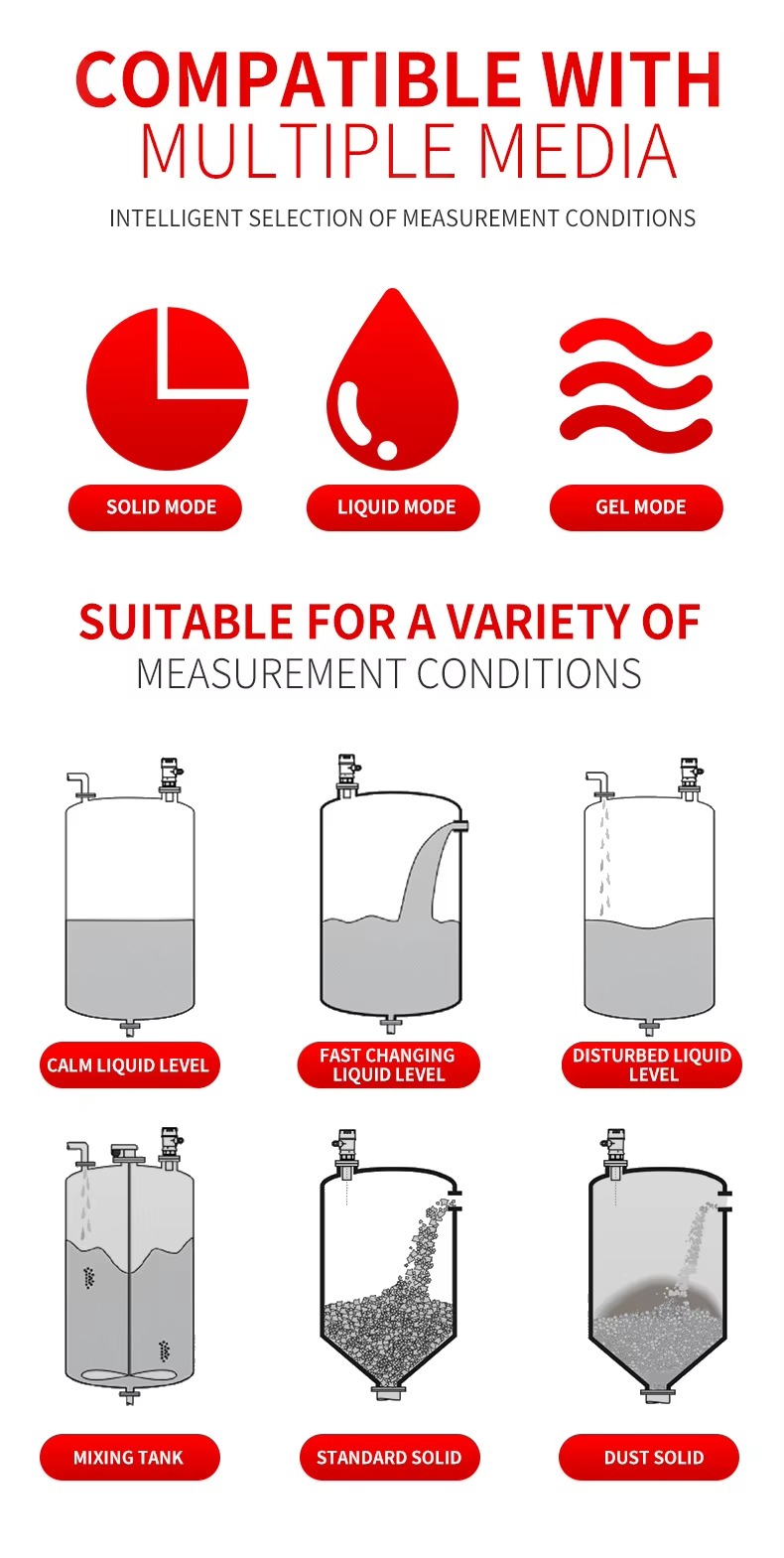

Level or material measurement
Good stability
Response speed is adjustable

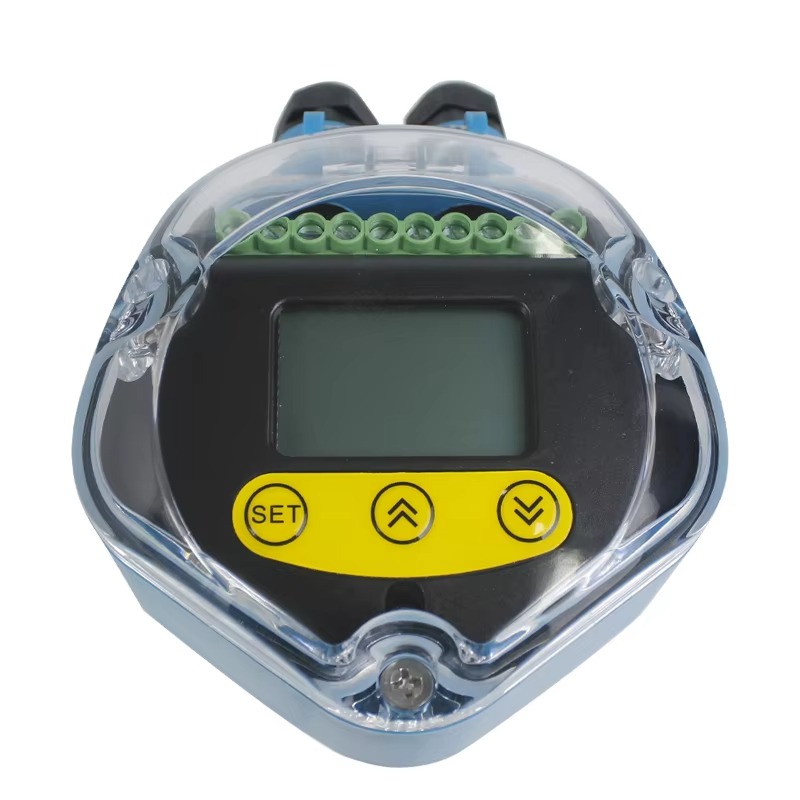

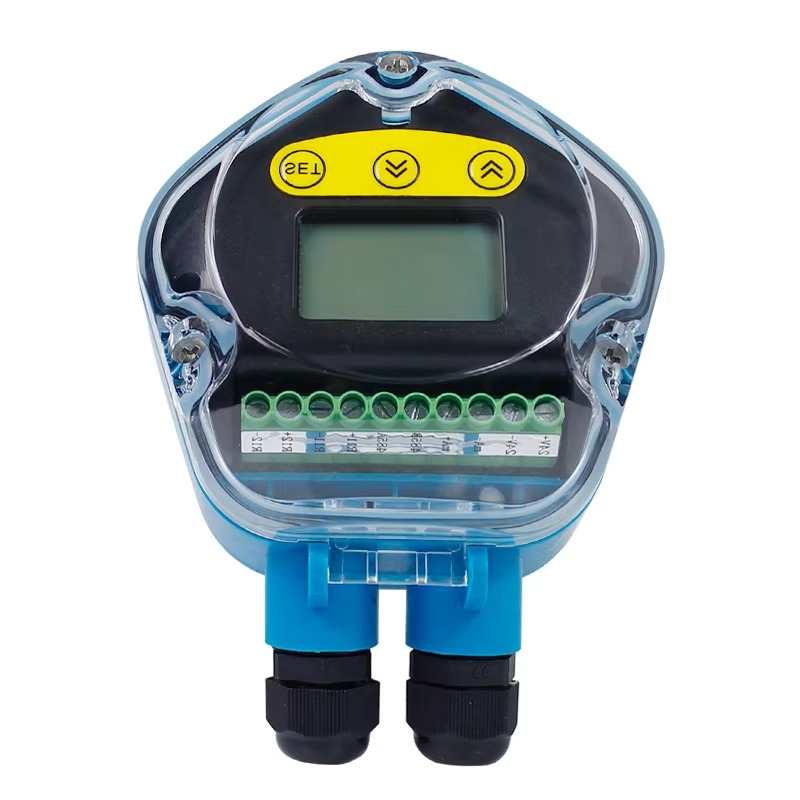

With LCD display
Easy Installation

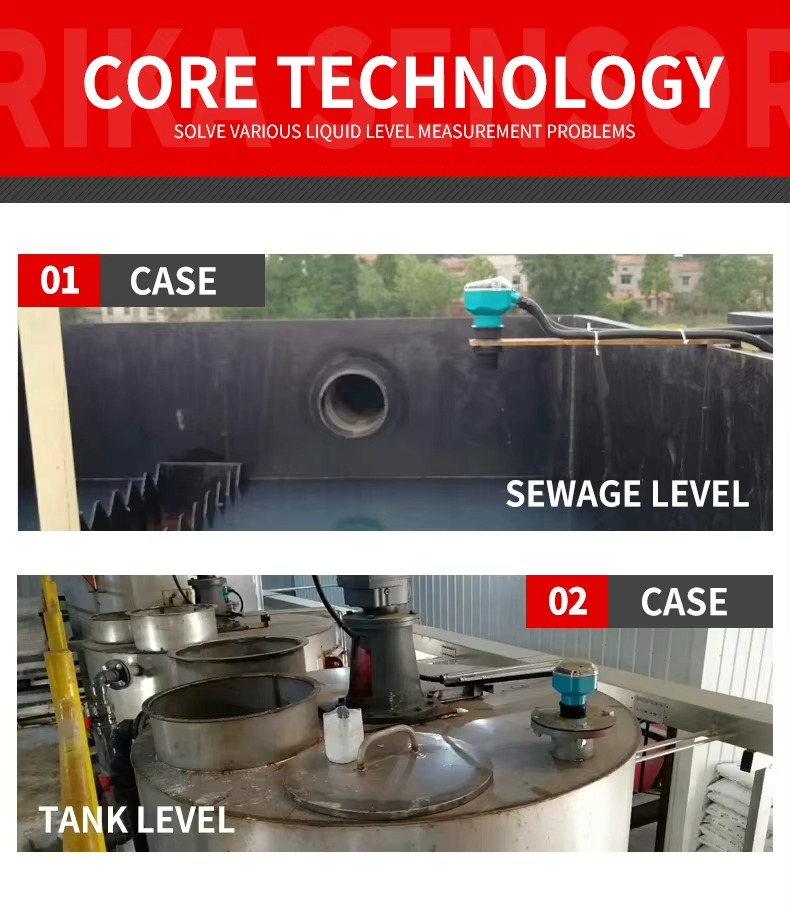

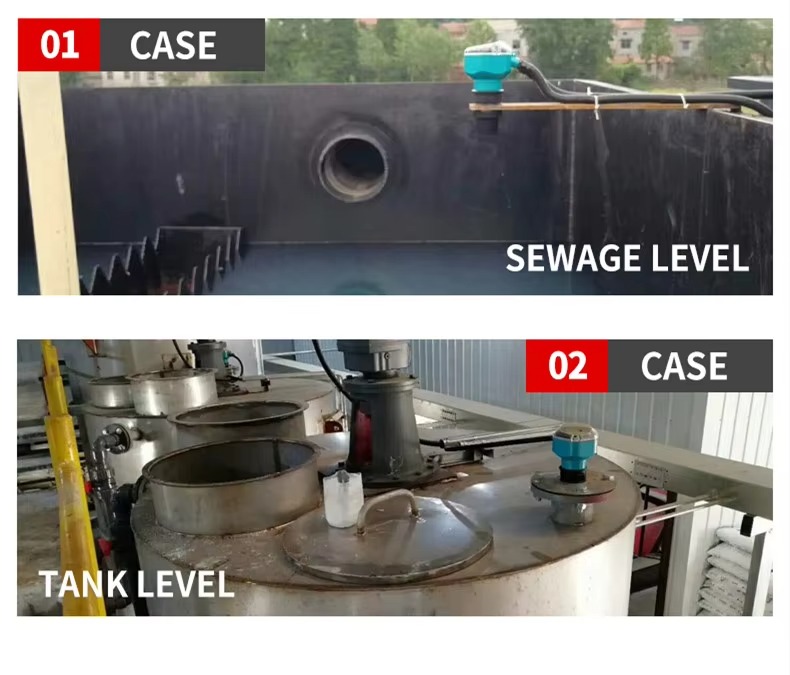

APPLICATIONS
River water level measurement
Lake water level measurement
Shallow water level measurement
Hydrographic survey
Material level measurement
Environmental protection
SPECIFICATION
Item | Technical specifications |
Range | 5m,10m,15m,20m,30m |
Output | 4-20mA( 2wires),4-20mA(4wires),RS485(4wires) |
Supply Voltage | 24VDC,220VAC |
Accuracy | 0.5%-1% |
Resolution | ±3mm or 0.1%FS(take the maximum value) |
Display | LCD with English |
Control output(optional) | Relay AC250V/8A or 30V/5A |
Power consumption | 4-wire,without relay:1.9W 4-wire,with relay:3.1W 2-wire,without relay:0.72W |
Ingress Protection | Probe:IP68,Display unit:IP66 |
Operating Temperature | Probe:-40℃~ +85℃,Display unit:-20℃~ +60℃ |
Housing material | Anti-aging corrosion resistant engineering plastics |
Process connection | Range=0-5m:M48*2 Range=0-10m:G2 or M60*2 Range=0-20m:G3 or M78*2 Range=0-30m:G3 M78*2 Range>30m:M108*2
|
Menu setting | Reference zero point, maximum of measuring range,minimum of measuring range,alarm point,Return difference setting,working mode,response time,parameter correction,communication setting etc. |
Storage Condition | 10℃-50℃@20%-90%RH |
Grade：Industrial
Warranty：one year
Place of Origin | WUHAN, China |
Customized support | OEM |
Brand Name | PUHUI |
Model Number | PHL-03 |
Item | Ultrasonic Liquid Level Sensor |
Range | 0-5m/0-10(15m,20m,30m,40m,50m,60m optional) |
Accuracy | 0.5% |
Output | 4-20mA(4wires or 2wires),RS485 |
Supply | 24VDC |
Resolution | ±3mm or 0.1%FS(take the maximum value) |
Control output | Relay AC250V/8A or 30V/5A |
Housing material | Anti-aging corrosion resistant engineering plastics |
Display | LCD optional |
Ingress Protection | Probe IP68, Display unit I |
Packaging Details | 1 piece per box |
Port | Any port in China |
Selling Units: | Single item |
Single package size: | 26X20X16 cm |
Single gross weight: | 1.400 kg |
