  • PH120-01C Industrial Digital Analog Cup Vane Anemometer Wind Speed and Direction Sensor RS485 Price

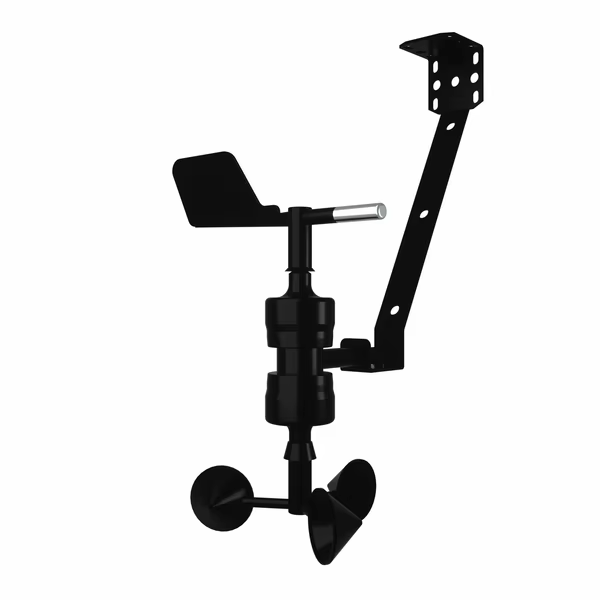

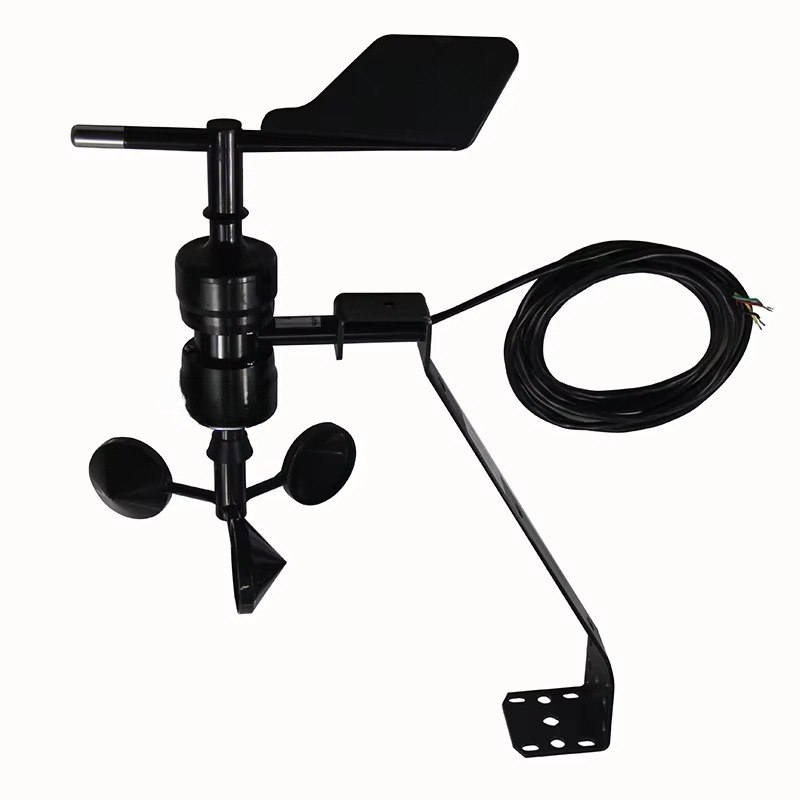

    PH120-01C Combined Wind Speed & Direction Sensor

    -Material:ABS plastic

    -Multiple Output :RS485,4-20mA,0-5V,RS232,pulse

    -Low starting threshold :0.5m/s

    -Good corrosion resistance

    -Ingress waterproof IP65

    -CE，ISO9001，TUV Certificate

    Product Introduction

    PH120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable.The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

    Product Features

    * Combined wind speed & direction sensor
    * Low starting threshold
    * Good corrosion resistance
    * Compact and light design
    * Easy Installation

    Applications

    * Environmental monitoring
    * Bridge & Tunnel
    * Solar and wind power generation
    * Wind resource assessment
    * Automatic weather station
    * Agriculture

    Product Paramenters

    Item

    Technical Specification

    Wind Speed

    Wind Direction

    Range

    0-45m/s(current or voltage ouput), 0-70m/s(pulse,RS485,RS232 output)

    0-360°

    Resolution

    0.1m/s

    1°

    Accuracy

    ±(0.3+0.03V)m/s ,V is current wind speed

    ≤±3°

    Acquisition Cycle

    3s

    Starting wind speed

    0.5m/s

    Limited wind speed

    75m/s

    Supply

    5V(only for digital output),12-24VDC

    Output Signal

    RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)

    Operating Temperature

    -40℃-+70℃

    Ingress Protection

    IP65

    Main material

    Aluminum alloy and carbon fiber

    Storage

    10-60℃@20%-90%RH

    Cable length

    Default 2.5m,other length is optional

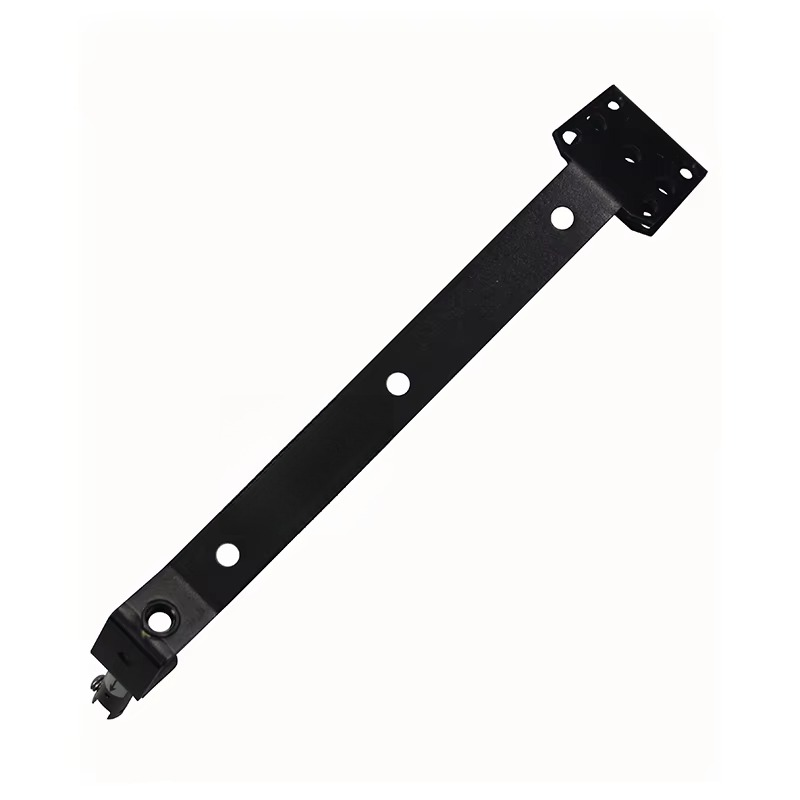

    Installation bracket

    attached

    Weight(unpacked)

    700g


    Contact Us
Product details

Industry-specific attributes

type:Wind Speed and Direction Sensor

Other attributes

place of origin

WUHAN, China

warranty

one year

customized support

OEM

brand name

PUHUI

model number

PH120-01C

Item

Wind Speed and Direction Sensor

Material

Aluminum alloy and carbon fiber

Wind speed range

0-45m/s(current or voltage ouput); 0-70m/s(pulse,RS485,RS232 output)

Wind speed resolution

0.1m/s

Wind speed accuracy

±(0.3+0.03V)m/s ,V is current wind speed

Wind direction range

0-360°

Wind direction resolution

1°

Wind direction accuracy

≤ ±3°

Output

RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)

Supply voltage

5V(only for digital o

Packaging and delivery


Packaging Details

1 piece per box,suitable for distance shipment

Port

Any port in China

Selling Units:

Single item

Single package size:

36X27X16 cm

Single gross weight:

1.500 kg
