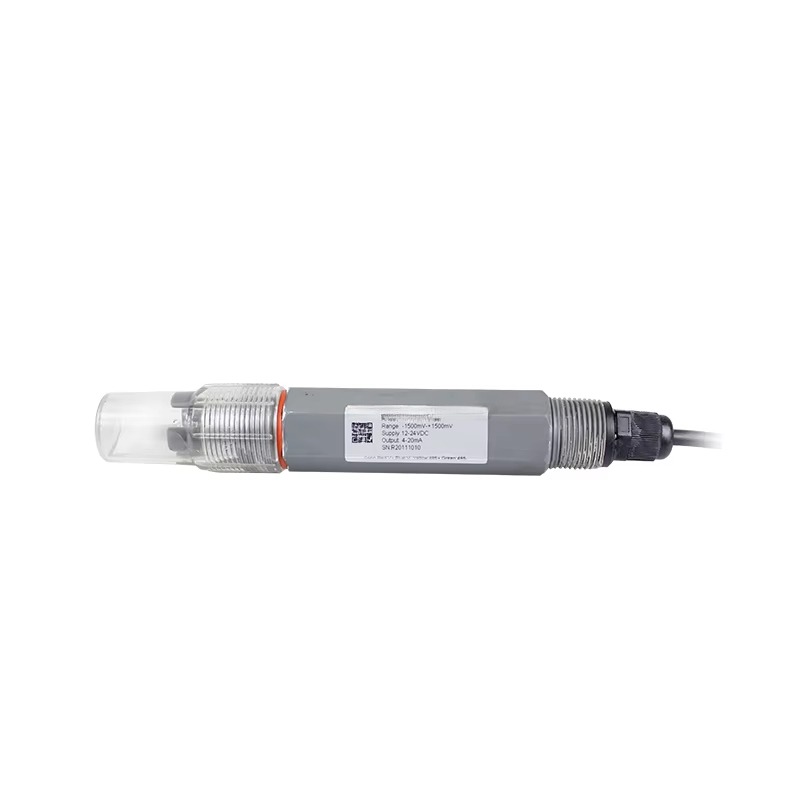

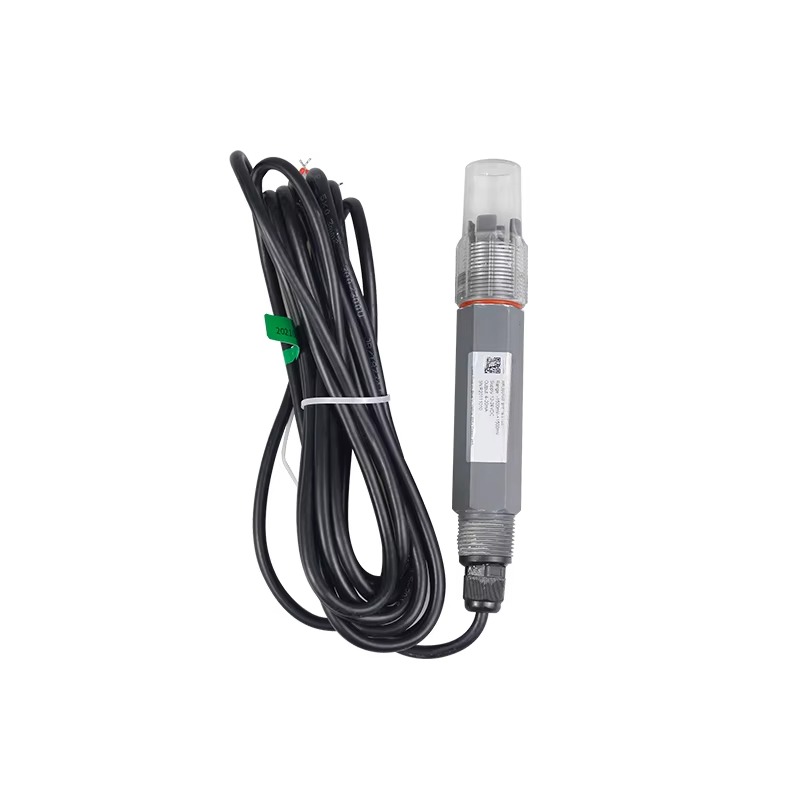

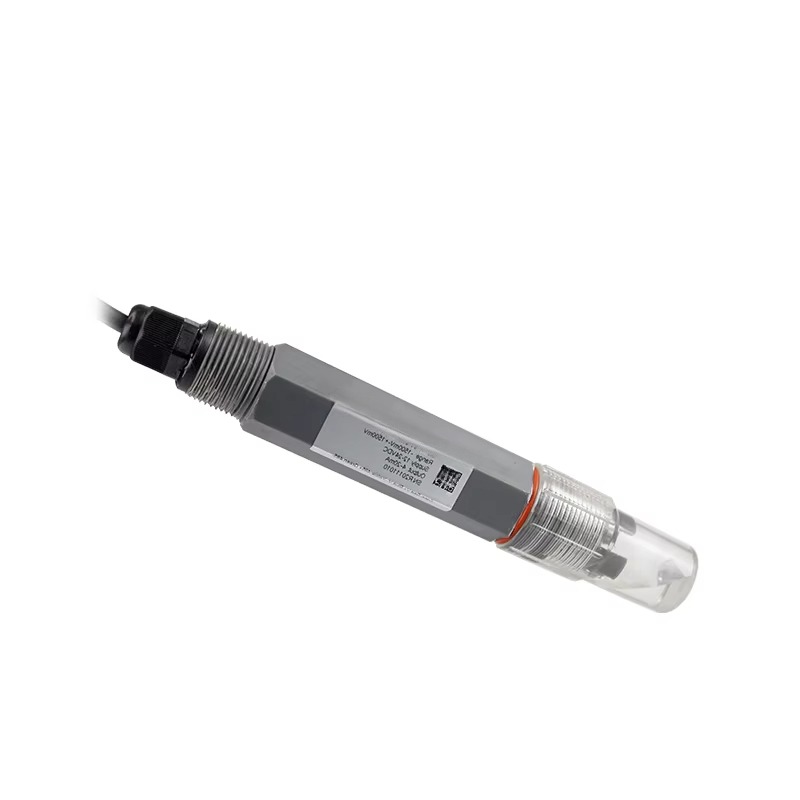

Product Description

ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications.

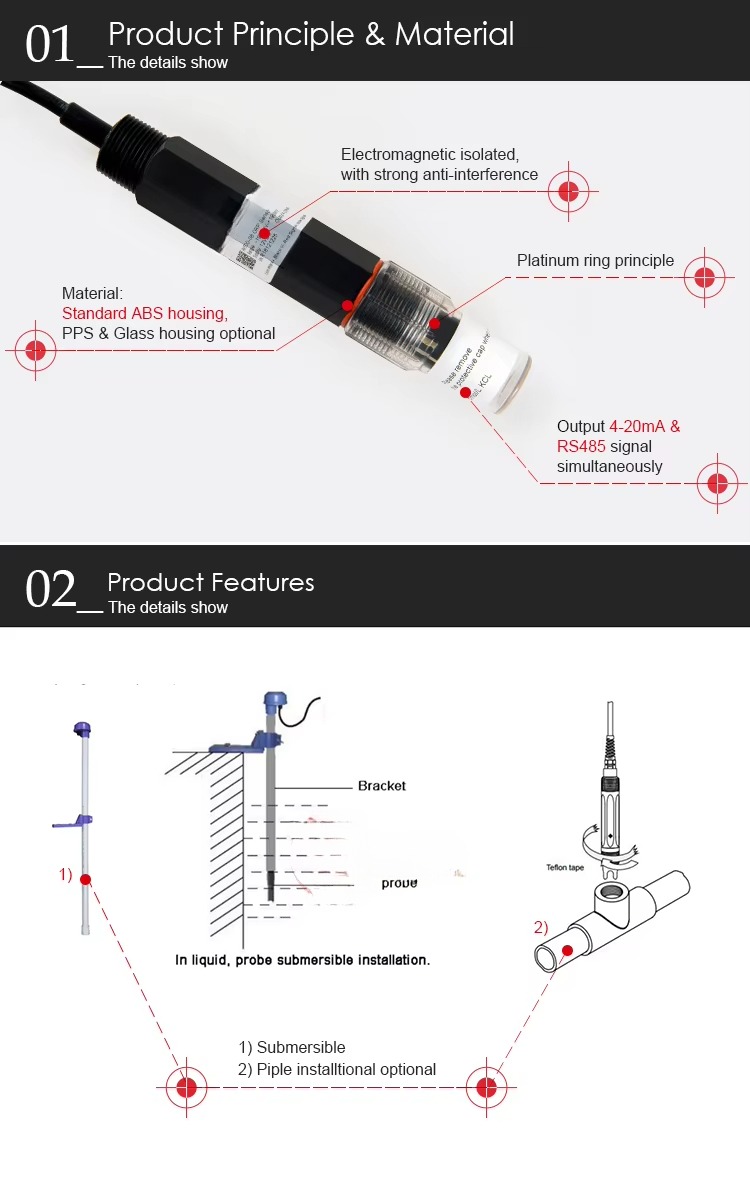

This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body
is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both
ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable
Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion
and poisoning extending the life time.

FEATURES

• On-line & real-time monitoring

• Simultaneous ORP and temperature measurement

• Integral temperature element for enhanced accuracy

• Double junction and long diffusion path for reference pollution resistance

• Extended life time by large volume of polymerized electrolyte and porous PTFE diaphragm

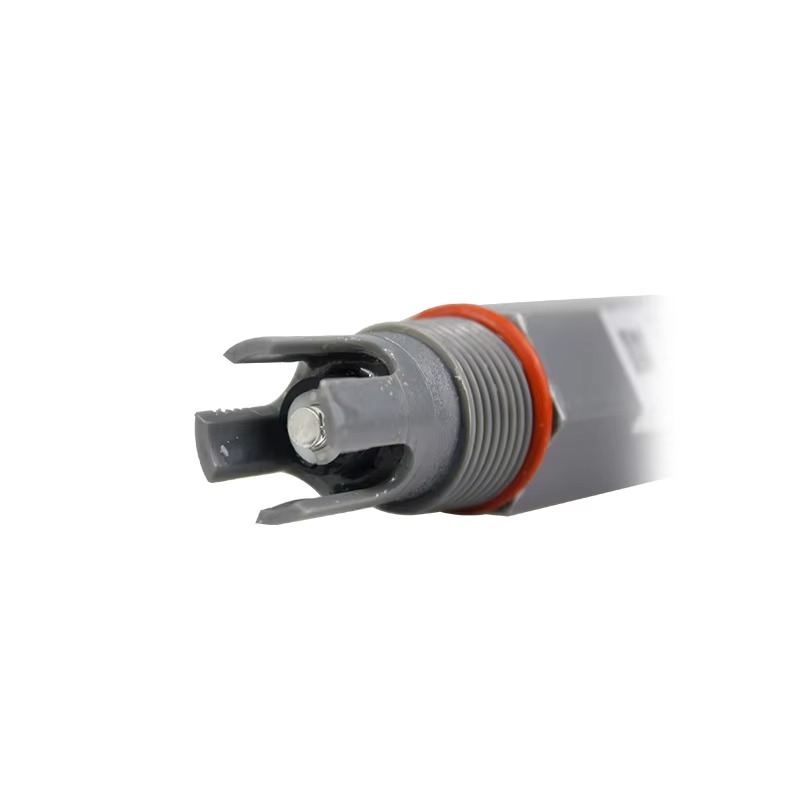

• Solid Glass/Platinum electrode for solution ground or ORP measurement

• Simple maintenance by comprehensive design

• Submerged mounting bracket is optional

APPLICATIONS

• Environmental protection

• Water quality monitoring

• Aquaculture

• Biochemistry

• Sewage treatment

• Industrial wastewater treatment

• Pharmaceutical

• Chemical

TECHNICAL SPECIFICATION
