  • TBQ-2C Data Logger Wireless LORA LORAWAN WIFI GPRS 4G PV Solar Radiation Accumulation Sensors

    item

    value

    Type

    weather station

    Mounting Type

    multi-function

    Description

    Flange installation

    Model Number

    TBQ-2C

    Use

    PAR

    Series

    HCD

    Features

    High Sensitivity

    Place of Origin

    China

    Contact Us
Product details

Industry-specific attributes

Type:weather station

Use:PAR

Other attributes

Mounting Type

multi-function

Description

Flange installation

Model Number

TBQ-2C

Series

HCD

Features

High Sensitivity

Place of Origin

wuhan, China

Brand Name

puhui

Output

RS485

Description

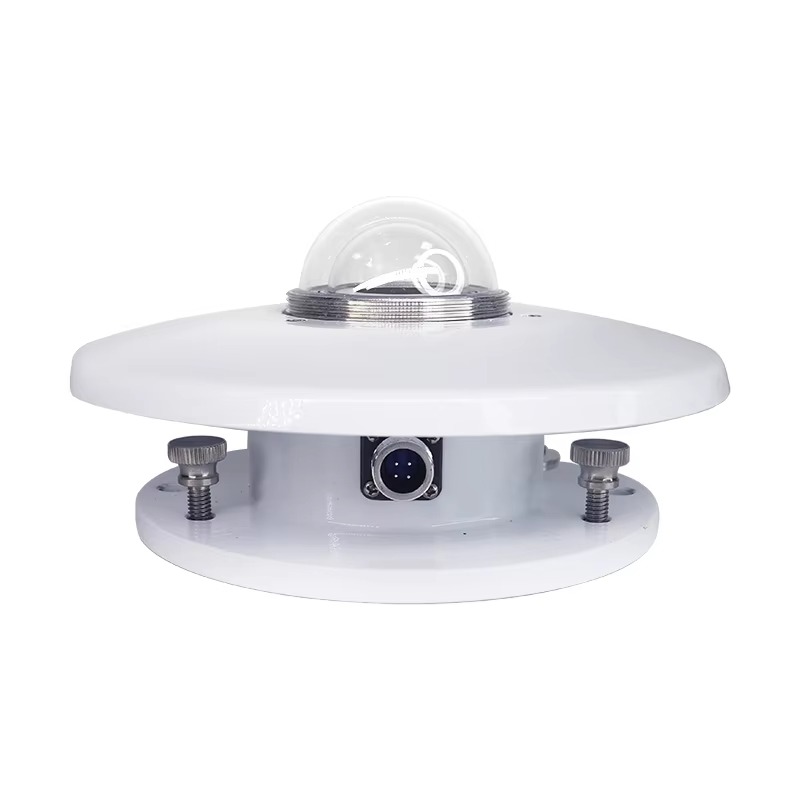

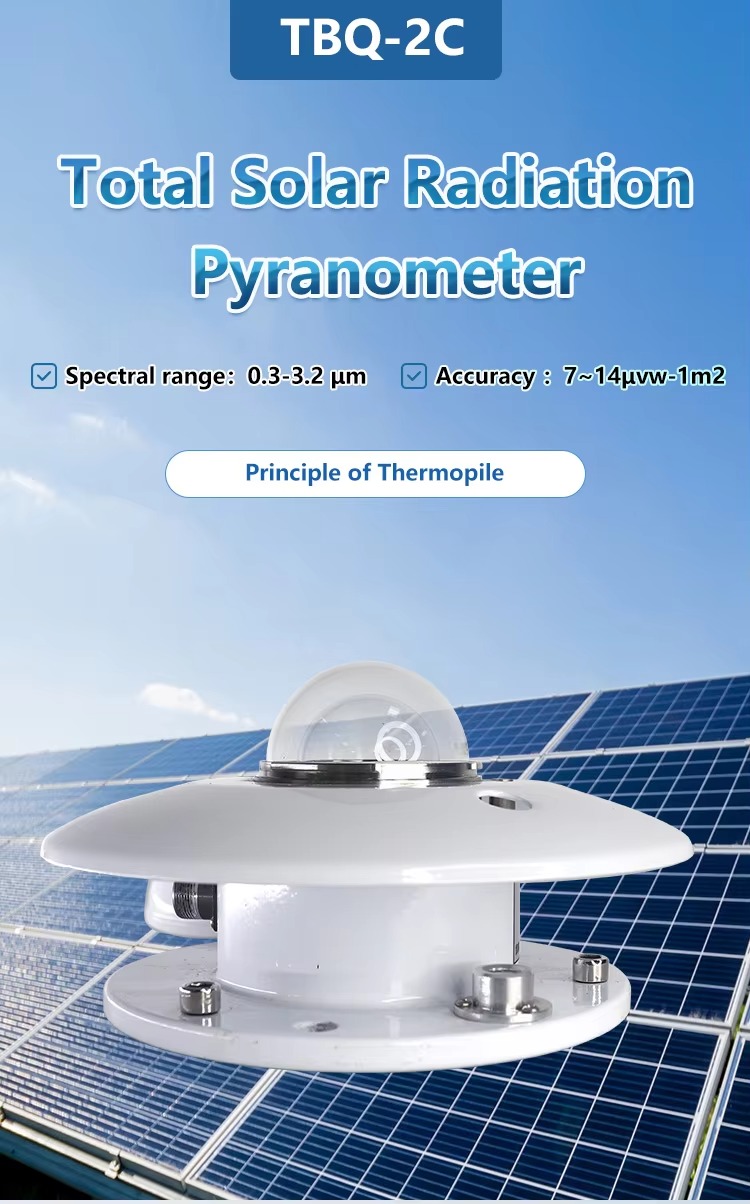

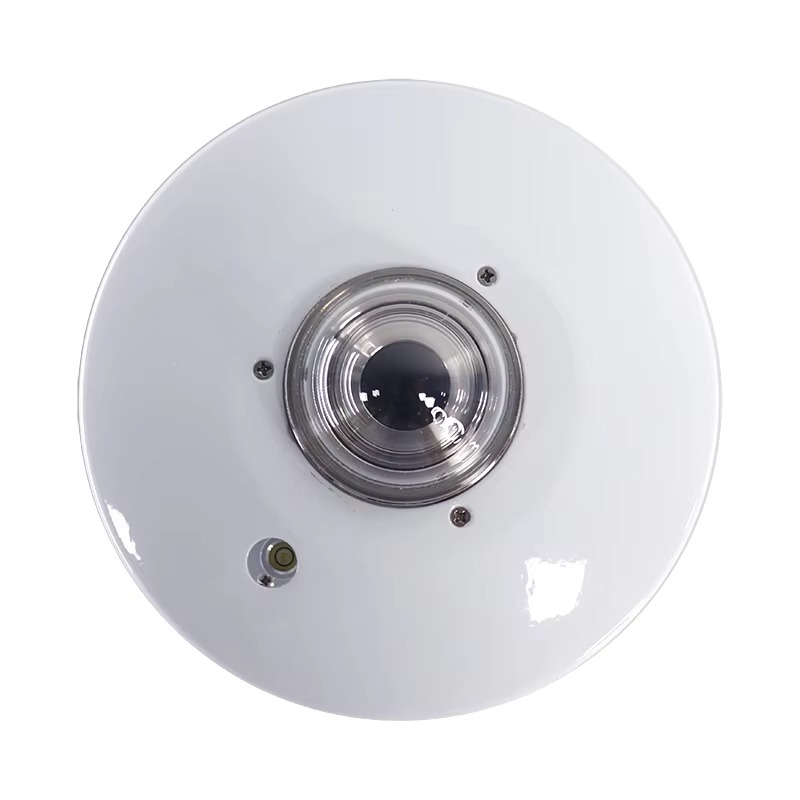

Total Solar Radiation Pyranometer Sensor

Description

solar radiation sensor

Output

200mv of original output

Sensitivity

7-14mv/kw*-2

Response time

<35s(99% response)

Annual stability

≤±2%

Cosine response

≤±7%(solar elevation 10°)

Position

≤±5%(solar elevation10°)

Non linear

≤±2%

Spectral range

0.3-3.2μm

Temperature coefficient

≤±2%(-10--40℃)

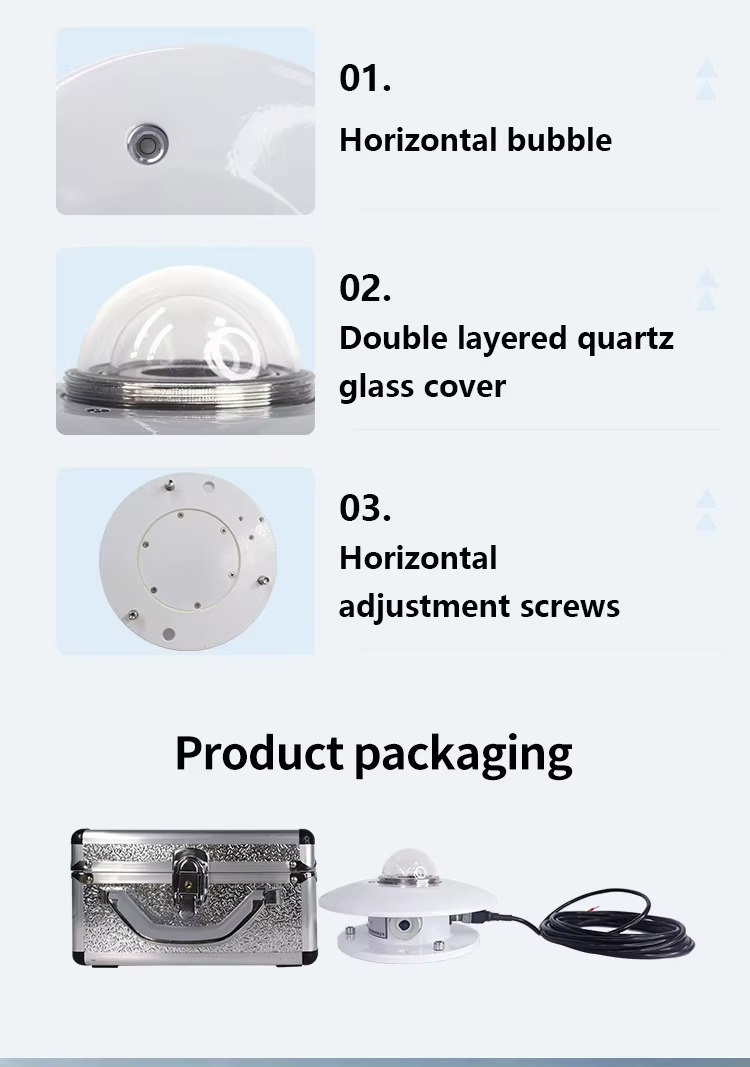

Packaging and delivery

Selling Units:

Single item

Single package size:

25X32X44 cm

Single gross weight:

1.000 kg
